- Part Number 38720-6307
- Manufacturer Molex
- Pin Count 7
- Part Category Connector
- Package Category Other

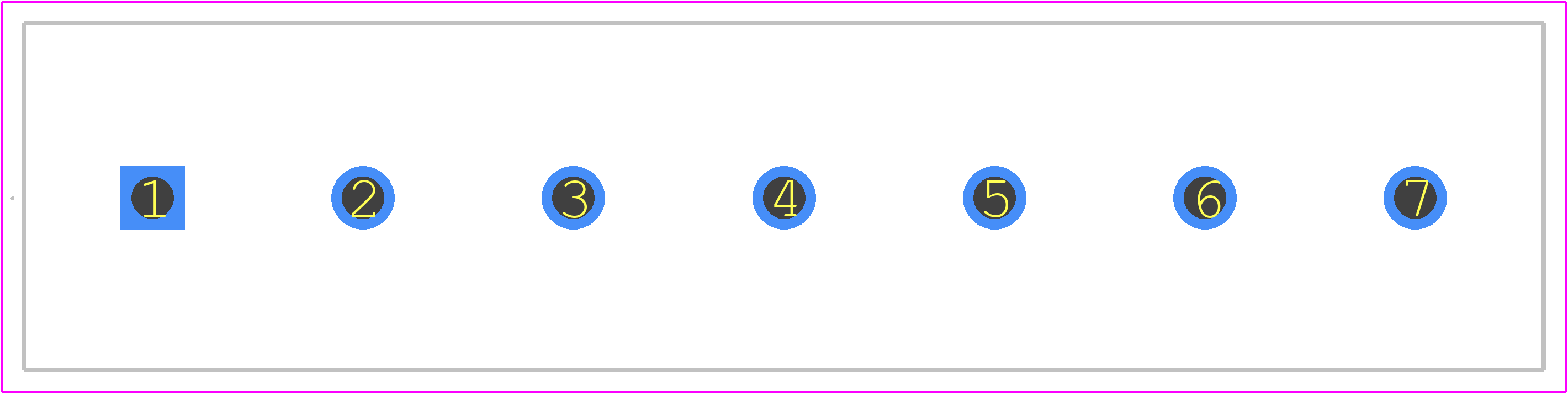

- Footprint Name Other - 38720-6307-1
- Released Date Aug 31, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
38720-6307 Details
-
Manufacturer Part Number:
38720-6307
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Country Of Origin:
Mexico, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Molex
-
YTEOL:
0
-
Additional Feature:
THERMOPLASTIC
-
Fastening Method:
SCREW
38720-6307 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 38720-6307 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
The 38720-6307 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains protected in harsh environments.
-
The 38720-6307 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
-
While the 38720-6307 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with Molex or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required performance and safety standards.
Trust Checks
Community Provided
System Verified
Community Approved
38720-6307 Overview
Use the download button to access the 38720-6307 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38720,
or try a keyword search, such as Terminals and Terminal Blocks
