Part Image

38720-7510 - Molex

Description: Barrier Terminal Blocks 10POS NO MNTG ENDS clamp washer

Download 38720-7510 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
38720-7510 - Molex - PCB symbol
click to zoom
PCB Footprints

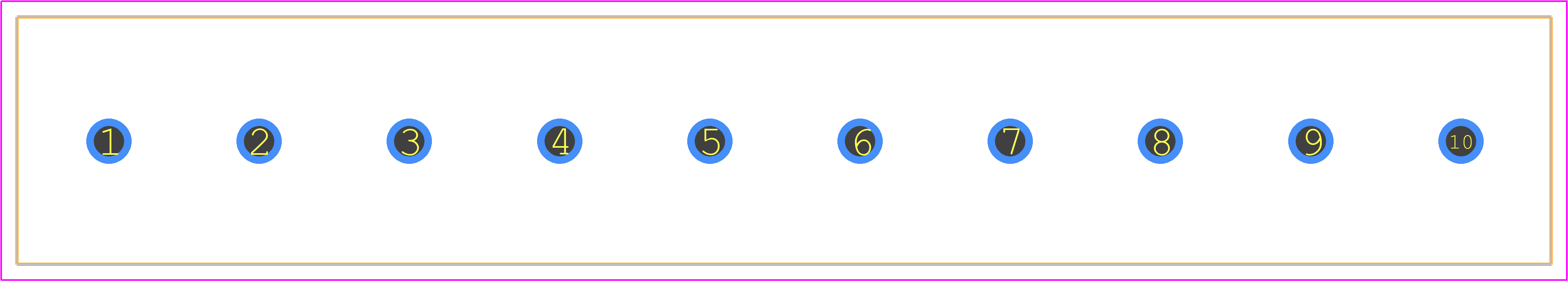

38720-7510 - Molex PCB footprint - Other - Other - 38720-7510-2
click to zoom
3D Models
38720-7510 - Molex - 3D model - Other - 38720-7510-2
click to zoom

38720-7510 Details

  • Manufacturer Part Number:

    38720-7510

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

38720-7510 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 38720-7510 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 38720-7510 connector has a rating of IP67, which means it provides protection against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to ensure the connector's environmental rating is maintained.
  • The 38720-7510 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the 38720-7510 connector is designed for use with AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's crucial to ensure the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

38720-7510 Overview

Use the download button to access the 38720-7510 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 38720, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
