STANDARD: DIN 41654; QF 50; POLARIZED; SHROUDED; STACKABLE
Board Mounting Option:
HOLE .112-.124
Body Breadth:
0.335 inch
Body Depth:
0.642 inch
Body Length:
2.066 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
TIN OVER NICKEL
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
YES
Dielectric Withstanding Voltage:
500VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
5.7824 N
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LATCH & EJECT
Mounting Option 2:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
4u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Reference Standard:
CSA; UL
Terminal Length:
0.138 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0
Withdrawl Force-Min:
.7784 N
39-27-1263 Frequently Asked Questions (FAQs)
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.
The operating temperature range for the Molex 39-27-1263 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the Molex 39-27-1263 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
Yes, the Molex 39-27-1263 connector is suitable for both signal and power applications, with a current rating of up to 13A per contact.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
39-27-1263 Overview

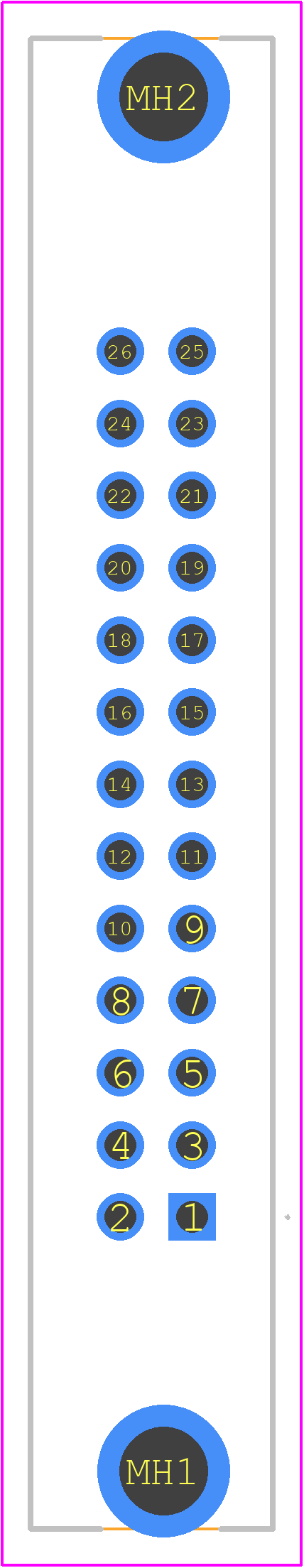

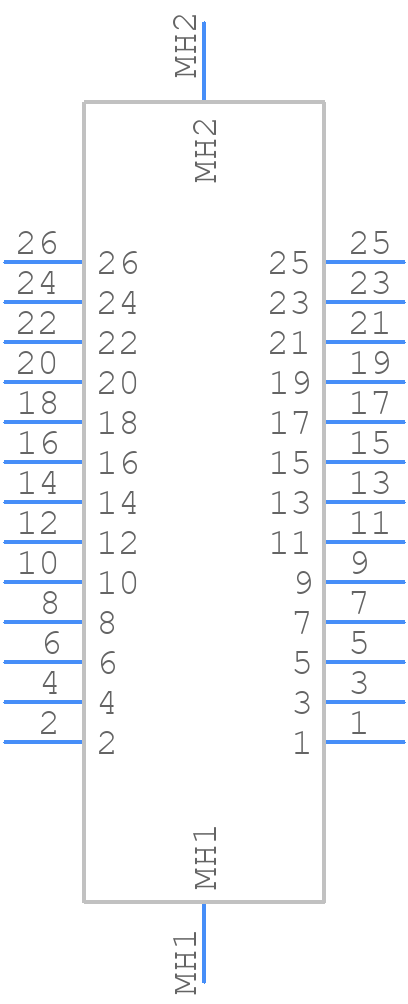

Use the download button to access the 39-27-1263 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39-27,
or try a keyword search, such as Headers and Edge Type Connectors
