39-28-1103 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

PCB Footprints

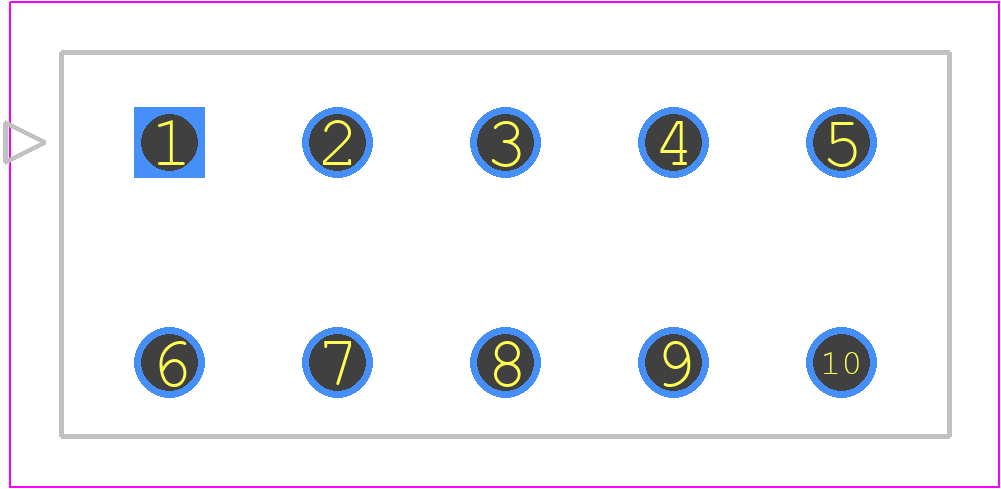

39-28-1103 - Molex PCB footprint - Other - Other - 39-28-1103

click to zoom

3D Models

39-28-1103 - Molex - 3D model - Other - 39-28-1103

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 39-28-1103
Part Number 39-28-1103
Manufacturer Molex
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - 39-28-1103
Released Date Oct 10, 2016
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

39-28-1103 Details

Manufacturer Part Number:
39-28-1103
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Brazil, Hong Kong SAR, India, Japan, Mainland China, Mexico, Puerto Rico
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
10 Weeks
Manufacturer:
Molex
YTEOL:
6.75
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - Copper (Cu)
Contact Material:
BRASS
DIN Conformance:
NO
IEC Conformance:
NO
MIL Conformance:
NO

39-28-1103 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
Yes, the 39-28-1103 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
The operating temperature range for the 39-28-1103 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the 39-28-1103 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
No, the 39-28-1103 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

39-28-1103 Overview

Use the download button to access the 39-28-1103 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 39-28, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
