Part Image

39-28-1243 - Molex

Description: 24 way vertical PCB header,Mini-Fit Jr Molex MINI-FIT JR. Series, Series Number 5566, 4.2mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 6A

Download 39-28-1243 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

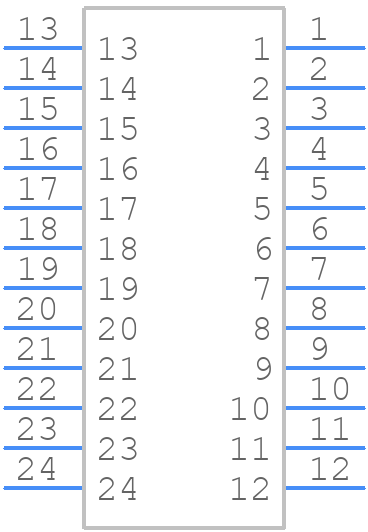

39-28-1243 - Molex - PCB symbol
click to zoom
PCB Footprints

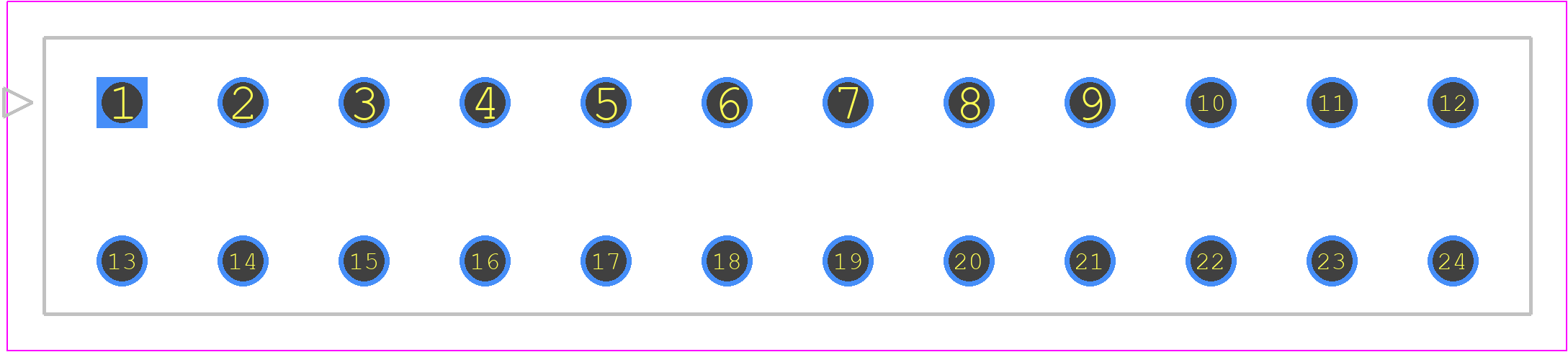

39-28-1243 - Molex PCB footprint - Other - Other - 39-28-1243
click to zoom
3D Models
39-28-1243 - Molex - 3D model - Other - 39-28-1243
click to zoom

39-28-1243 Details

  • Manufacturer Part Number:

    39-28-1243

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Brazil, Hong Kong SAR, Japan, Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.85

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

39-28-1243 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 39-28-1243 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 39-28-1243 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 39-28-1243 connector is designed for automated assembly and can be used with pick-and-place machines.
  • The mating cycle life of the 39-28-1243 connector is 500 cycles minimum.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

39-28-1243 Overview

Use the download button to access the 39-28-1243 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39-28, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
