39-28-8160 - Molex

Description: Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

Download 39-28-8160 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
39-28-8160 - Molex - PCB symbol
click to zoom
PCB Footprints

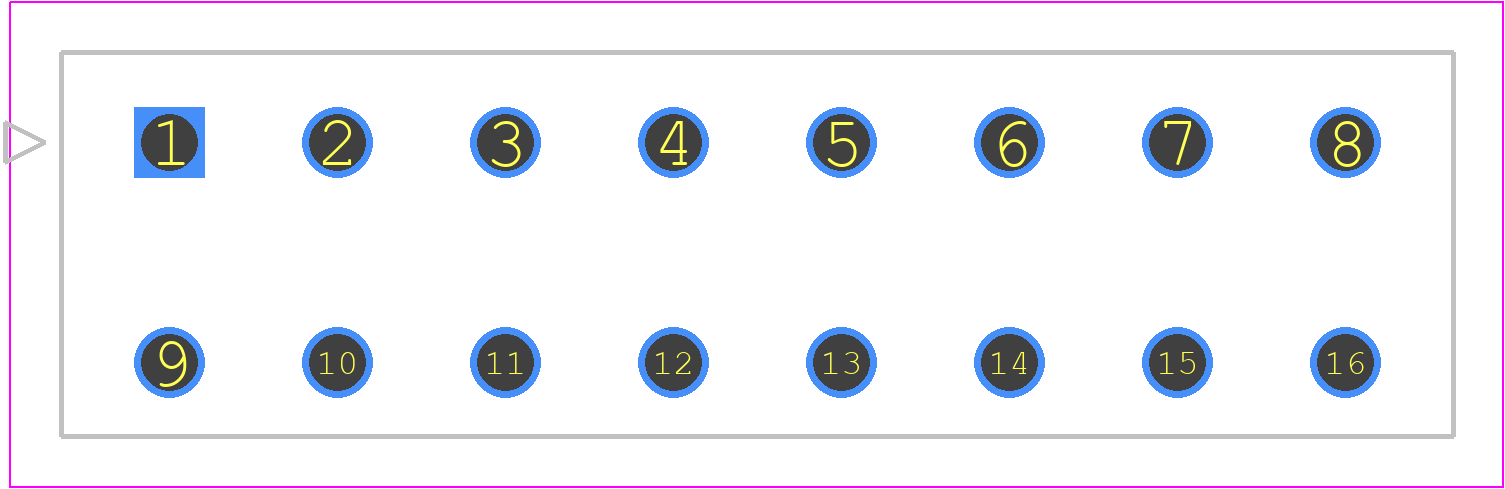

39-28-8160 - Molex PCB footprint - Other - Other - 39-28-8160
click to zoom
3D Models
39-28-8160 - Molex - 3D model - Other - 39-28-8160
click to zoom

39-28-8160 Details

  • Manufacturer Part Number:

    39-28-8160

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Brazil, Hong Kong SAR, Japan, Mainland China, Mexico, Puerto Rico, South Korea, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

39-28-8160 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 39-28-8160 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 39-28-8160 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 39-28-8160 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 39-28-8160 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

39-28-8160 Overview

Use the download button to access the 39-28-8160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39-28, or try a keyword search, such as Power Connectors
