39-29-4209 - Molex

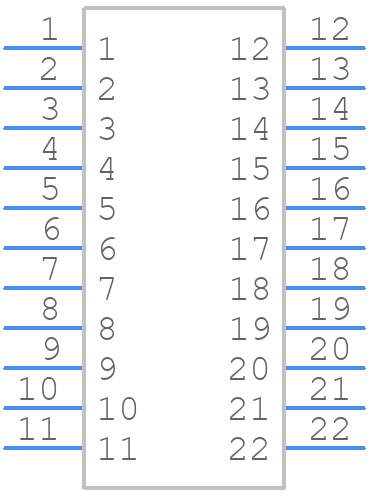

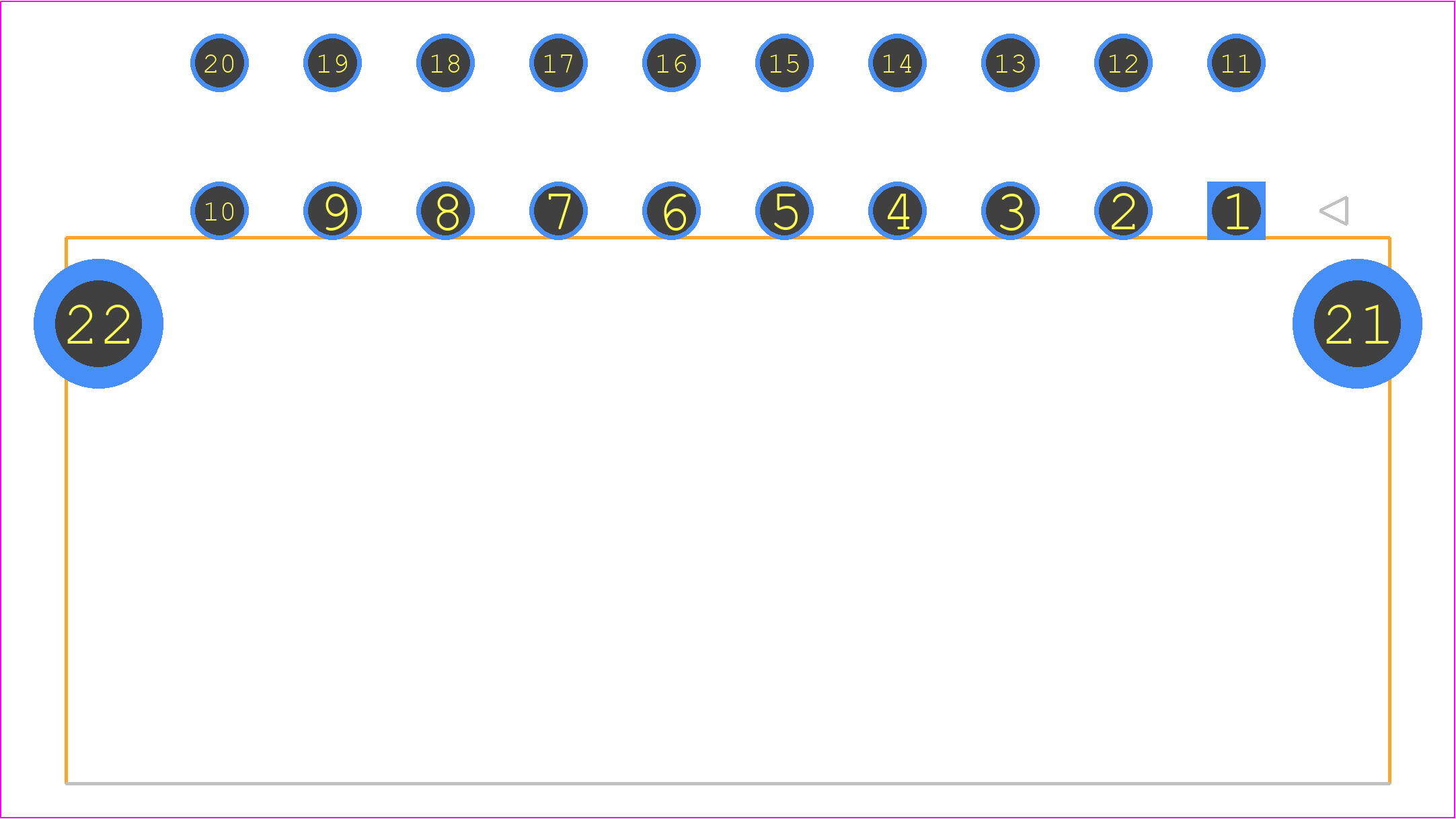

39-29-4209 Details

• Manufacturer Part Number:

  39-29-4209

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mexico, Puerto Rico

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Molex

• YTEOL:

  6.75

• Additional Feature:

  MINI-FIT JR, LOW PROFILE

• Body Breadth:

  0.394 inch

• Body Depth:

  0.764 inch

• Body Length:

  2.094 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Arrangement:

  S0P20

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  2200VAC V

• Durability:

  30 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  6.672 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• Reference Standard:

  UL

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  4.191 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .5004 N
