39-30-6222 - Molex

Description: Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 22 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

Download 39-30-6222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

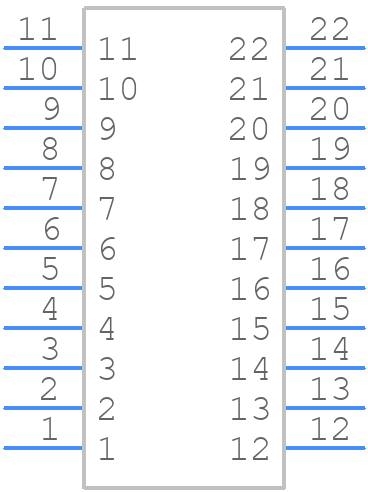

39-30-6222 - Molex - PCB symbol
click to zoom
PCB Footprints

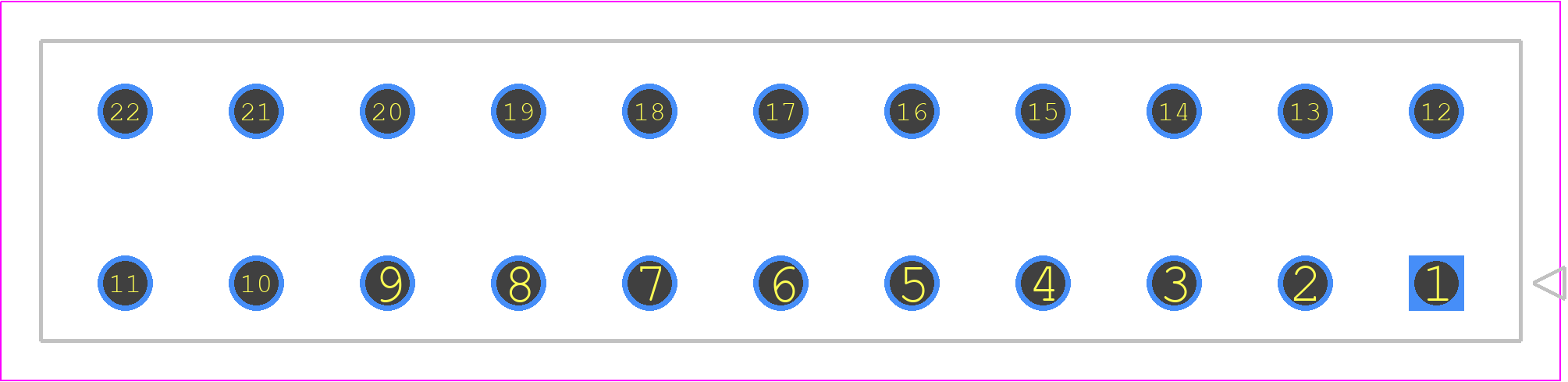

39-30-6222 - Molex PCB footprint - Other - Other - 39-30-6222
click to zoom
3D Models
39-30-6222 - Molex - 3D model - Other - 39-30-6222
click to zoom

39-30-6222 Details

  • Manufacturer Part Number:

    39-30-6222

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

39-30-6222 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 39-30-6222 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6.
  • Yes, the connector is rated IP67, which means it can withstand temporary immersion in water and is suitable for outdoor use.
  • The operating temperature range for the 39-30-6222 connector is -40°C to 125°C (-40°F to 257°F).
  • While the connector is designed for 22 AWG wire, it can accommodate wire sizes from 20 AWG to 24 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

39-30-6222 Overview

Use the download button to access the 39-30-6222 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39-30, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
