39-53-2114 - Molex

39-53-2114 Details

• Manufacturer Part Number:

  39-53-2114

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China, Vietnam

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks

• Manufacturer:

  Molex

• YTEOL:

  6

• Body Breadth:

  0.213 inch

• Body Depth:

  0.386 inch

• Body Length:

  0.768 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin/Bismuth (Sn/Bi)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  700VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e6

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.049 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

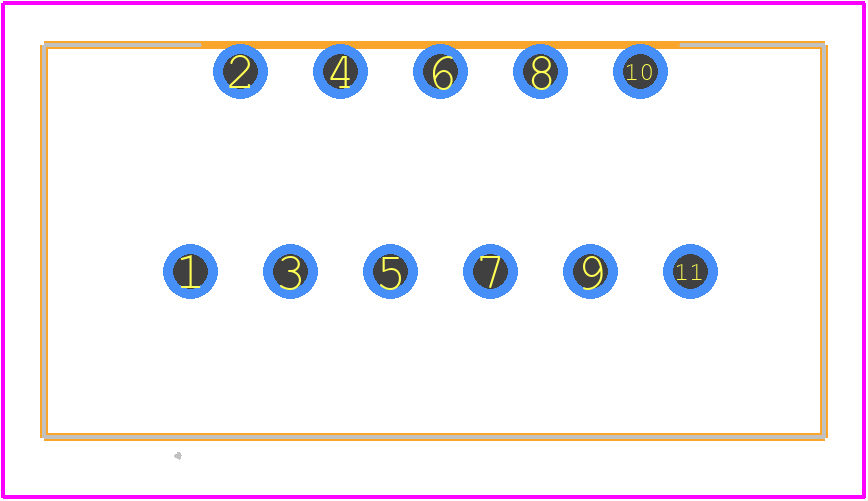

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  5 mm

• Plating Thickness:

  40u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  1.25 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  11

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  ZIF N
