Technical Content
Part Image

39281183 - Molex

Description: Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 18 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

Download 39281183 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
39281183 - Molex - PCB symbol
click to zoom

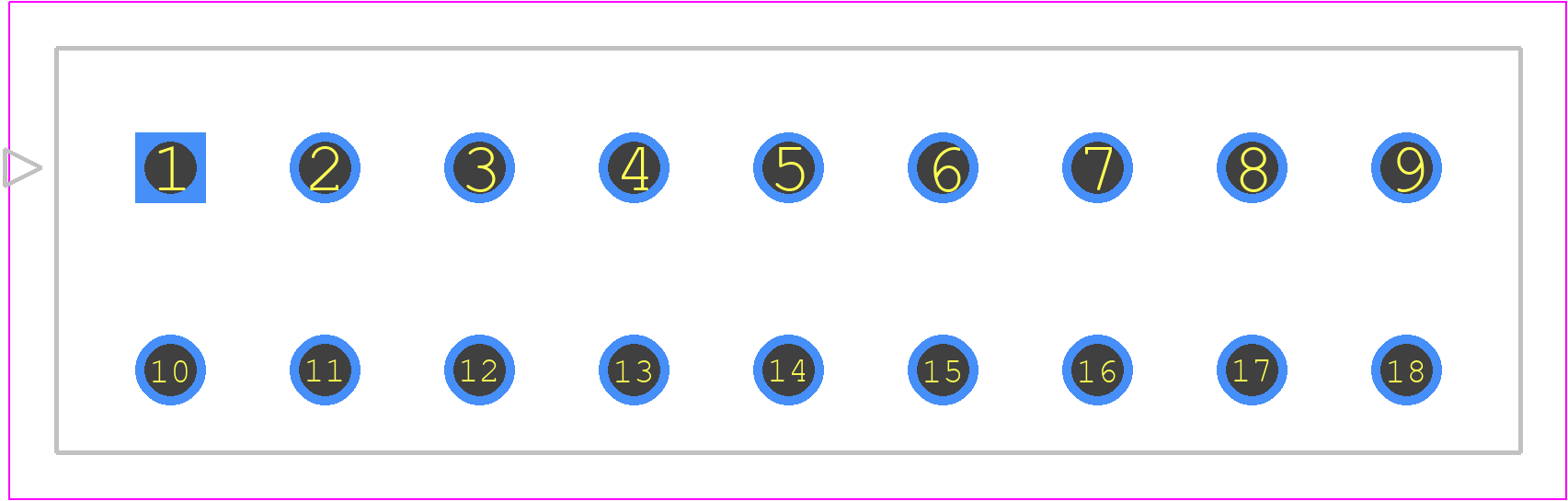

PCB Footprints
39281183 - Molex PCB footprint - Other - Other - 39281183
click to zoom
3D Models
39281183 - Molex - 3D model - Other - 39281183
click to zoom

39281183 Details

  • Manufacturer Part Number:

    39281183

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Brazil, India, Japan, Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

39281183 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 39281183 connectors are designed to withstand high-vibration environments, making them suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the connectors are rated for operating temperatures ranging from -40°C to 105°C (-40°F to 221°F) and are suitable for use in harsh environments, including outdoor and high-temperature applications.
  • The maximum wire size that can be used with the 39281183 connectors is 18 AWG (1.0 mm²).
  • Yes, the connectors are designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

39281183 Overview

Use the download button to access the 39281183 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39281, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
