The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.
The operating temperature range for the Molex 39357-0009 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the Molex 39357-0009 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
Yes, the Molex 39357-0009 connector is suitable for both signal and power applications, with a current rating of up to 3A per contact.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
39357-0009 Overview

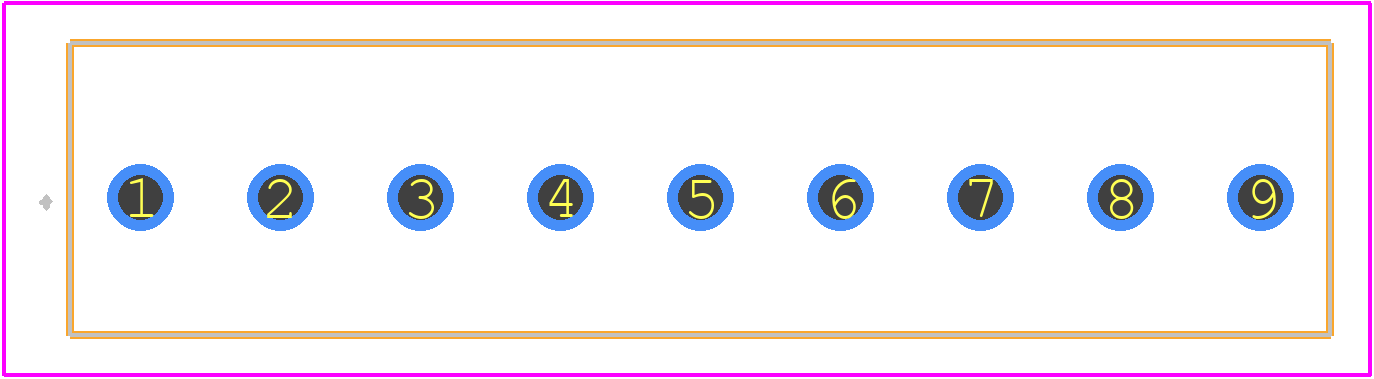

Use the download button to access the 39357-0009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39357,
or try a keyword search, such as Terminals and Terminal Blocks
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
