39357-0012 - Molex

Description: 3.50mm Pitch Beau Eurostyle Fixed Mount PCB Terminal Block, Circuits

Download 39357-0012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
39357-0012 - Molex - PCB symbol
click to zoom
PCB Footprints

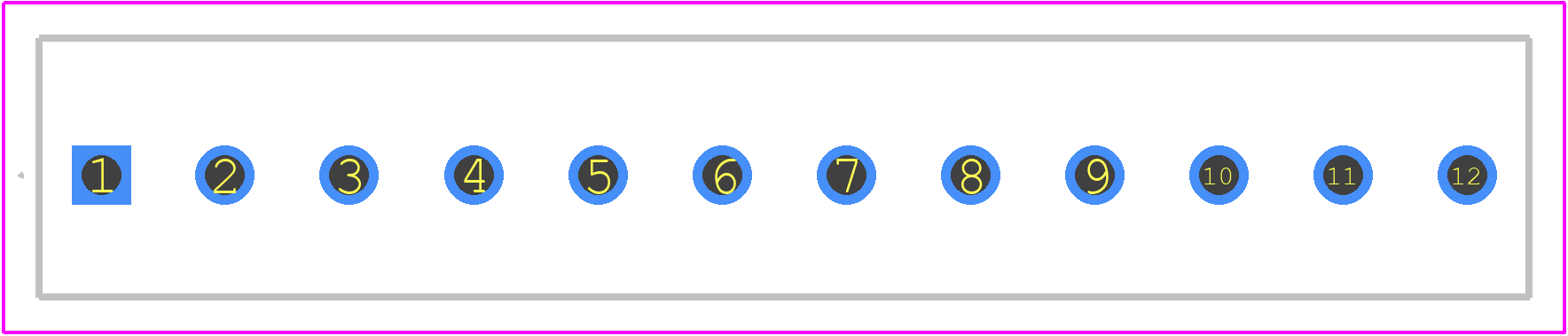

39357-0012 - Molex PCB footprint - Other - Other - 39357-0012-3
click to zoom
3D Models
39357-0012 - Molex - 3D model - Other - 39357-0012-3
click to zoom

39357-0012 Details

  • Manufacturer Part Number:

    39357-0012

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    PA66

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    12 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.31 mm2

  • Wire Gauge:

    16 AWG

39357-0012 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 39357-0012 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
  • The 39357-0012 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
  • The 39357-0012 is designed to accommodate wire sizes from 24 AWG to 16 AWG.
  • It's not recommended to use the 39357-0012 with a mating connector from another manufacturer, as compatibility and performance cannot be guaranteed. It's best to use Molex's recommended mating connectors for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

39357-0012 Overview

Use the download button to access the 39357-0012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39357, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
