39425-0002 - Molex

Description: Pluggable Terminal Blocks SR BTS 12MM HDR 85A M HDR 85A 600V 2 ASY

Download 39425-0002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
39425-0002 - Molex - PCB symbol
click to zoom
PCB Footprints

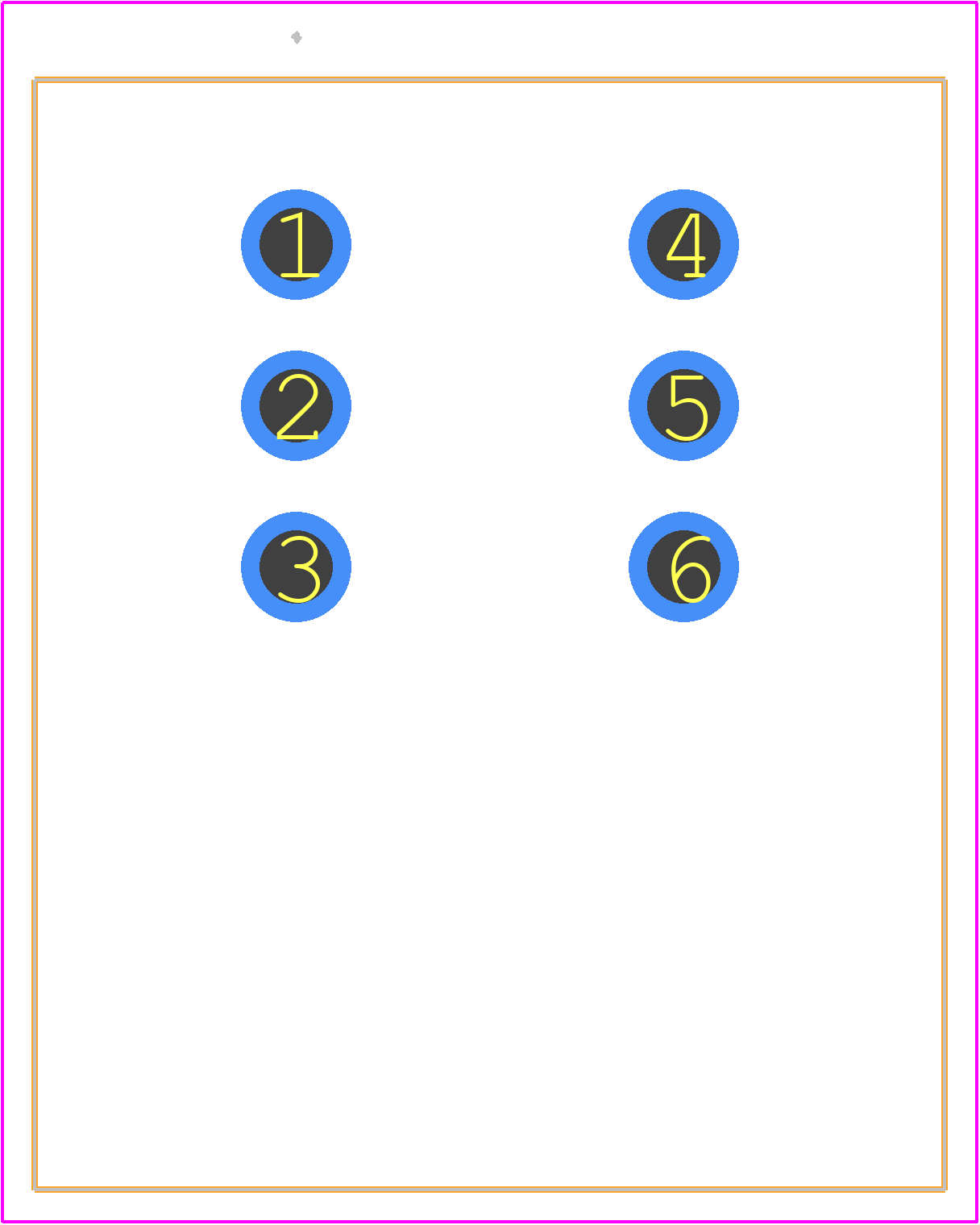

39425-0002 - Molex PCB footprint - Other - Other - 39425-0002-2
click to zoom
3D Models
39425-0002 - Molex - 3D model - Other - 39425-0002-2
click to zoom

39425-0002 Details

  • Manufacturer Part Number:

    39425-0002

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    PBT

  • Fastening Method:

    SCREW

  • Mounting Type:

    CABLE

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    85 A

  • Rated Voltage:

    600 V

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    21.2 mm2

  • Wire Gauge:

    3 AWG

39425-0002 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 39425-0002 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 39425-0002 connector is designed for indoor use and is not rated for outdoor or harsh environmental use. If you need a connector for outdoor use, consider using a connector with a higher IP rating or environmental protection.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, you should verify the wire size and insulation diameter to ensure proper fit and connection reliability.
  • Yes, it's essential to follow the recommended PCB layout guidelines provided by Molex to ensure proper connector mating and to prevent damage to the connector or PCB. Pay attention to the recommended keep-out zones and component placement.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

39425-0002 Overview

Use the download button to access the 39425-0002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39425, or try a keyword search, such as Terminals and Terminal Blocks

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
