The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 395-040-559-212 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 395-040-559-212 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor applications.
The 395-040-559-212 connector has an operating temperature range of -40°C to +125°C (-40°F to +257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to consult with EDAC Inc or a qualified engineer to ensure that the connector is compatible with the desired wire size and to determine any necessary modifications or adjustments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
395-040-559-212 Overview

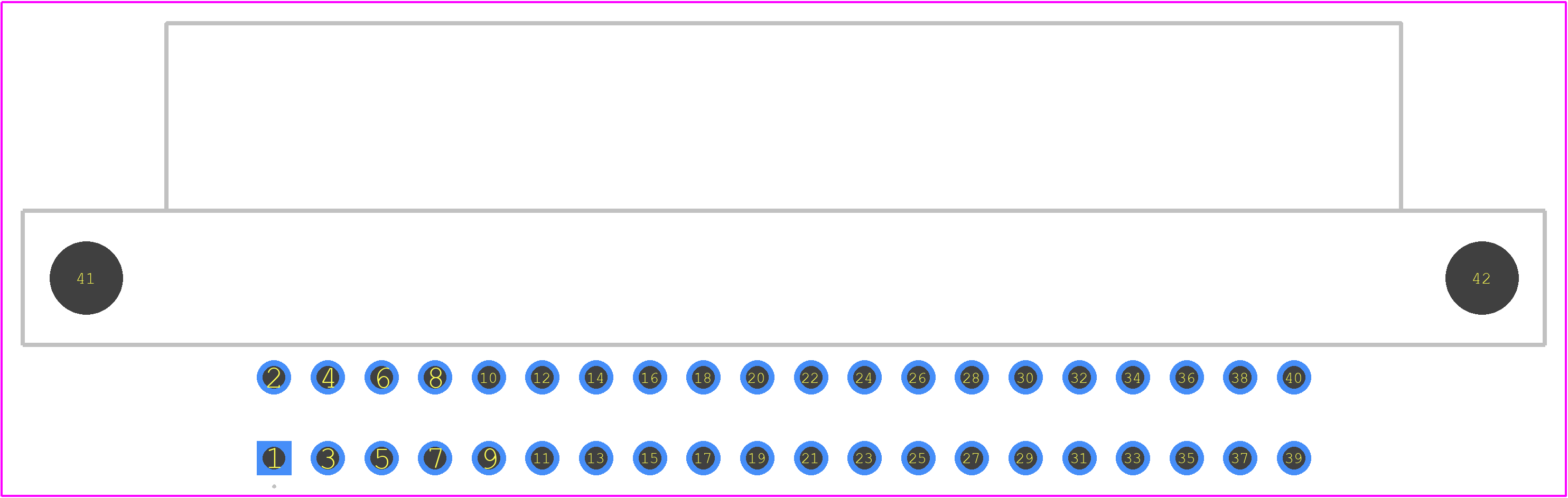

Use the download button to access the 395-040-559-212 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 395-0,
or try a keyword search, such as Headers and Edge Type Connectors
