Symbol

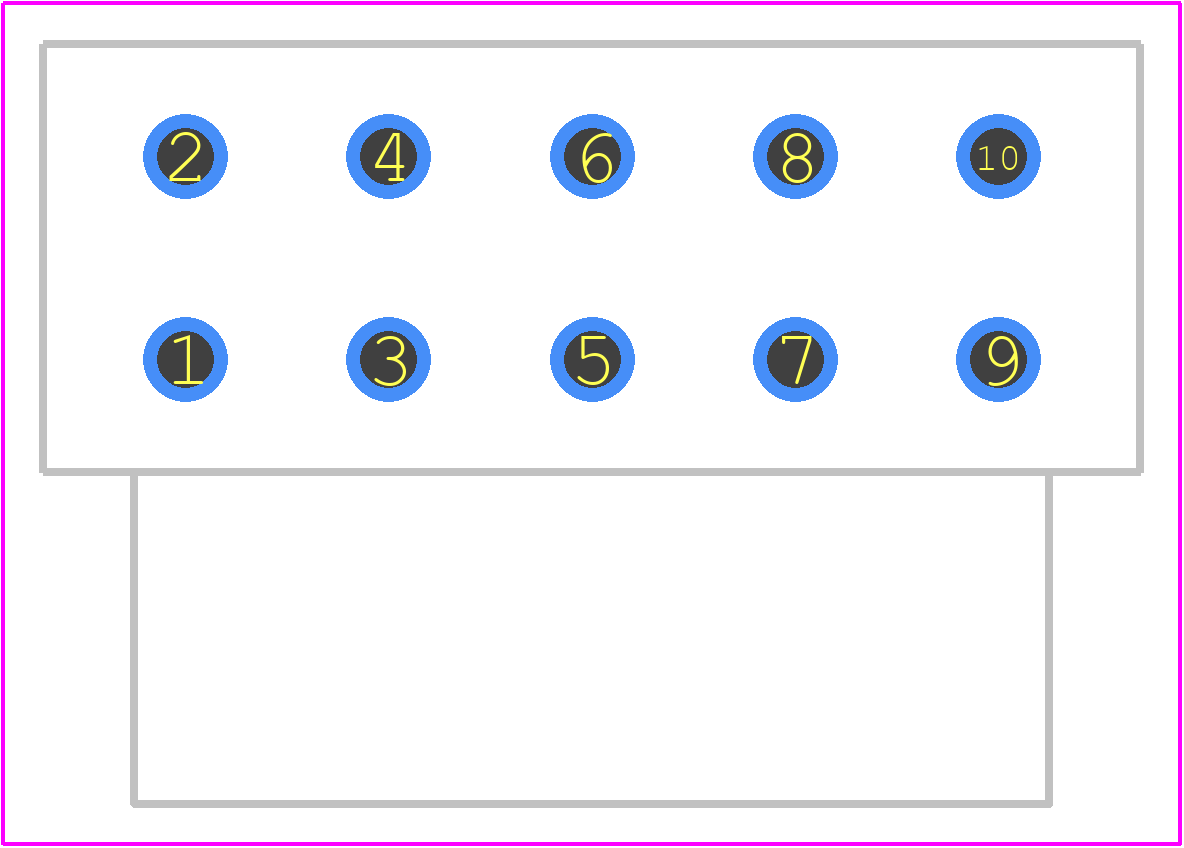

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 397340005
- Part Number 397340005
- Manufacturer Molex
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - 397340005-1
- Released Date May 20, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
397340005 Details
-
Manufacturer Part Number:
397340005
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Molex
-
YTEOL:
8
-
Additional Feature:
STANDARD: 94V-0, POLYAMIDE66
-
Fastening Method:
CONNECTOR
-
Mounting Type:
BOARD
-
Number of Decks:
1
-
Number of Rows:
1
Trust Checks
Community Provided
System Verified
Community Approved
397340005 Overview
Use the download button to access the 397340005 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 39734,
or try a keyword search, such as Terminals and Terminal Blocks
