- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 399100104
- Part Number 399100104
- Manufacturer Molex
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - 399100104-2
- Released Date Nov 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
399100104 Details
-
Manufacturer Part Number:
399100104
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
Reach Compliance Code:
Not Compliant
-
Country Of Origin:
Mexico, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Molex
-
YTEOL:
0
399100104 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
-
Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.
-
The operating temperature range for the 399100104 connector is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 399100104 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
-
Yes, the 399100104 connector is suitable for both signal and power applications, with a current rating of up to 3A per contact.
Trust Checks
Expert Contribution
System Verified
Community Approved
399100104 Overview

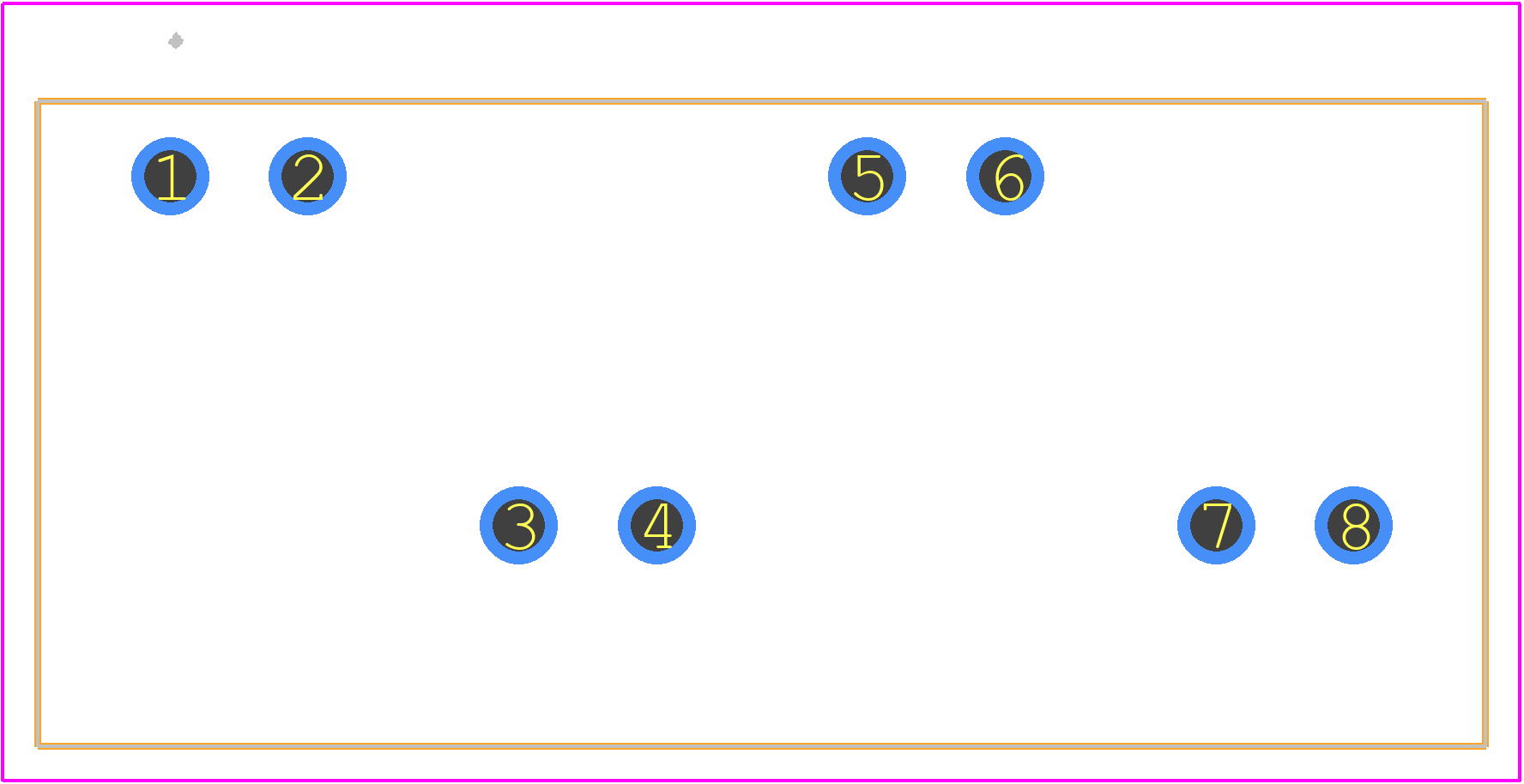

Use the download button to access the 399100104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 39910,
or try a keyword search, such as Terminals and Terminal Blocks
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
