3ACFE1W_12S3.1 - Gaptec

Description: Open Frame AC DC Converters 1 Output 12V 250mA 85 ~ 305 VAC, 120 ~ 430 VDC Input

Download 3ACFE1W_12S3.1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 3ACFE1W_12S3.1 model

Email notifications will be applied after download.

Send part feedback

Symbol

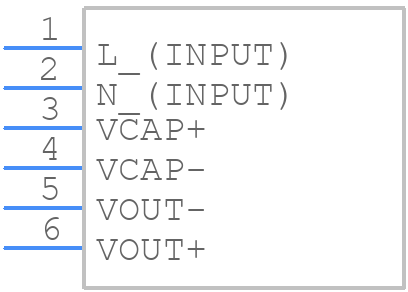

3ACFE1W_12S3.1 - Gaptec - PCB symbol

PCB Footprints

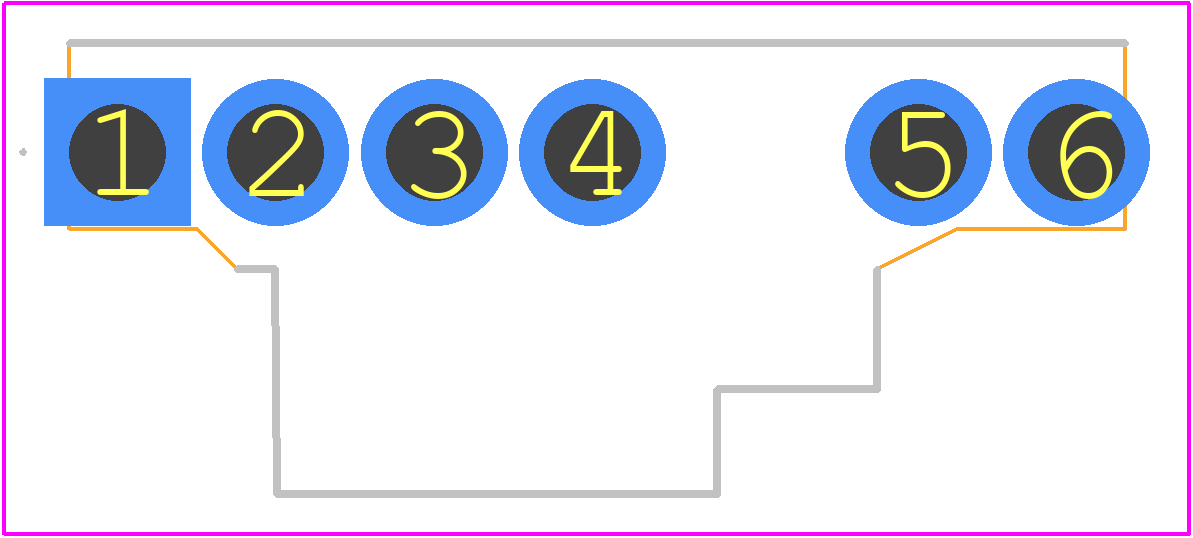

3ACFE1W_12S3.1 - Gaptec PCB footprint - Other - Other - 6-SIP Module

3D Models

3ACFE1W_12S3.1 - Gaptec - 3D model - Other - 6-SIP Module

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3ACFE1W_12S3.1
Part Number 3ACFE1W_12S3.1
Manufacturer Gaptec
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - 6-SIP Module
Released Date Sep 19, 2025
Last Modified Date Sep 19, 2025 1:06 PM UTC
Pinout / Pin List Click Here (Member Only)

3ACFE1W_12S3.1 Details

Manufacturer Part Number:
3ACFE1W_12S3.1
Manufacturer:
GAPTEC Electronic GmbH & Co. KG

Trust Checks

Expert Contribution

System Verified

Community Approved

3ACFE1W_12S3.1 Overview

Use the download button to access the 3ACFE1W_12S3.1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 3ACFE, or try a keyword search, such as Visible LEDs
