- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 3FD-312
- Part Number 3FD-312
- Manufacturer Tamura
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - 3FD-312-1
- Released Date Aug 15, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3FD-312 Details
-
Manufacturer Part Number:
3FD-312
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Tamura Corporation of America
-
YTEOL:
6.26
-
Additional Feature:
PCB MOUNTABLE
-
Approvals:
UL; CSA
-
Number of Secondary Winding:
2
-
Output Current 1:
0.2 A
3FD-312 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with a Tamura application engineer for specific guidance.
-
The 3FD-312 has built-in EMI filters and shielding to minimize noise and electromagnetic interference. However, additional external filtering or shielding may be required depending on the specific application and environment.
-
The 3FD-312 is rated for operation from -40°C to 125°C, but derating may be required for high-temperature applications. Consult the datasheet and Tamura application engineers for specific guidance.
-
Yes, the 3FD-312 is designed for high-reliability applications and meets various safety standards. However, additional testing and certification may be required depending on the specific application and industry regulations.
-
Lead times and MOQs vary depending on the region and distribution channel. Contact a Tamura authorized distributor or representative for specific information on lead times and MOQs.
Trust Checks
Community Provided
System Verified
Community Approved
3FD-312 Overview

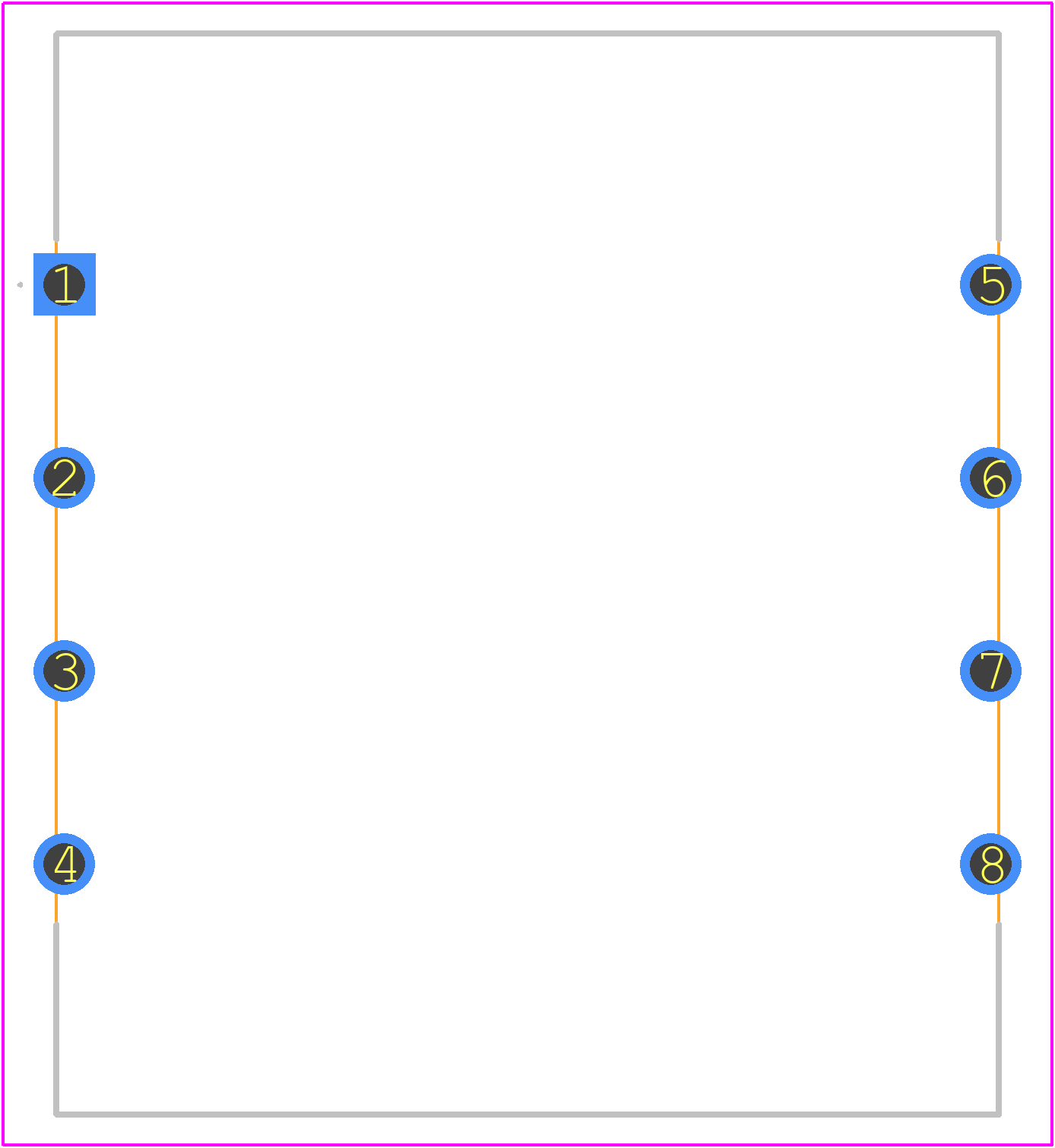

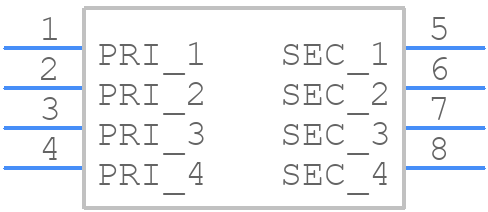

Use the download button to access the 3FD-312 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3FD-3,
or try a keyword search, such as Power/Mains Transformers
