- Part Number 3FD-320
- Manufacturer Tamura
- Pin Count 8
- Part Category Transformer
- Package Category Other

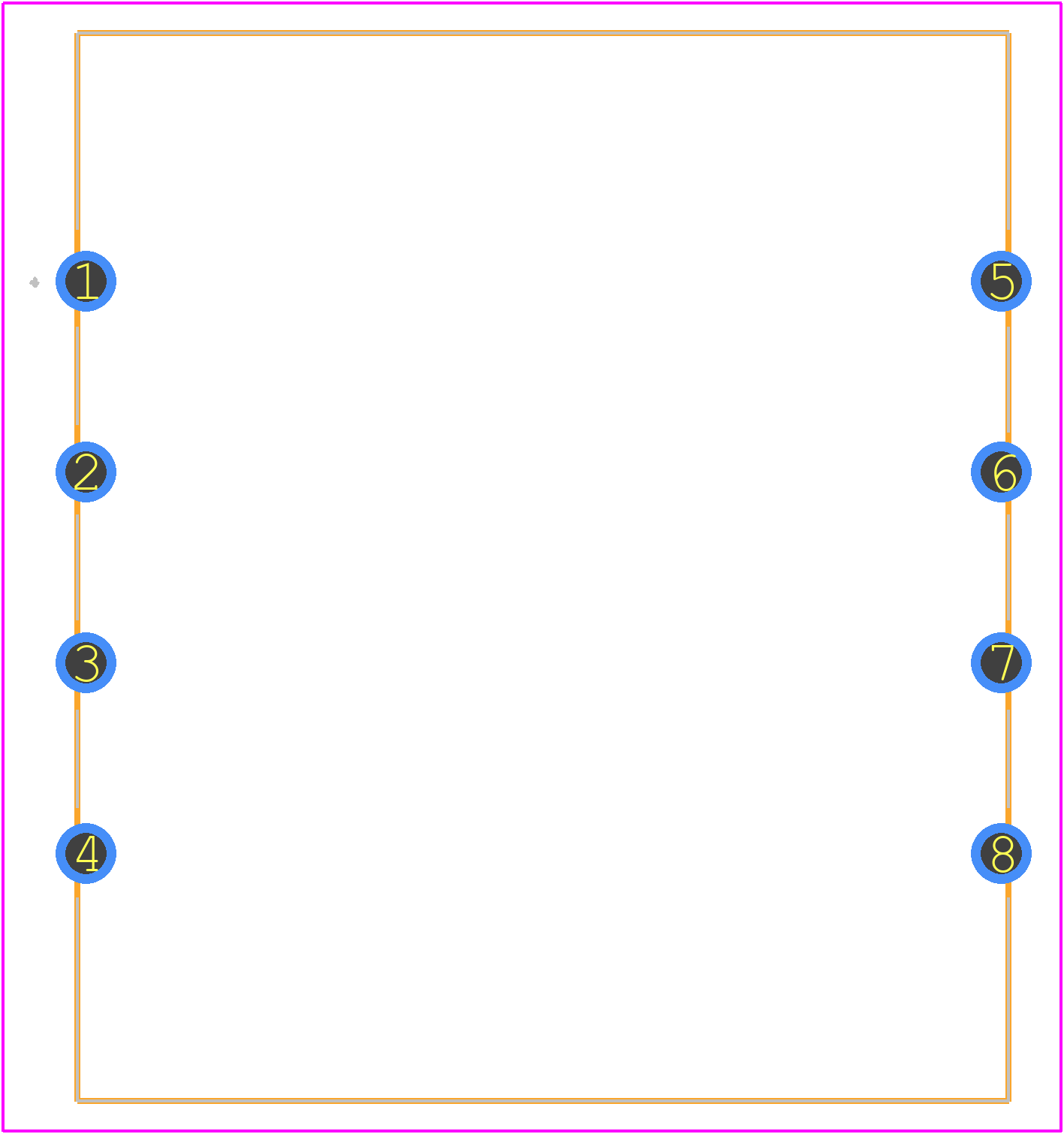

- Footprint Name Other - 3FD-320-2
- Released Date Jul 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3FD-320 Details
-
Manufacturer Part Number:
3FD-320
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Tamura Corporation of America
-
YTEOL:
6.26
-
Additional Feature:
PCB MOUNTABLE
-
Approvals:
UL; CSA
-
Number of Secondary Winding:
2
-
Output Current 1:
0.12 A
3FD-320 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output stages separate to minimize noise coupling.
-
Provide adequate heat sinking and ensure good airflow around the device. Avoid blocking airflow or using the device in enclosed spaces.
-
The device can withstand voltage transients up to 1.5 times the maximum rated voltage for a duration of 100ms. Exceeding this may cause damage or malfunction.
-
Yes, but ensure you follow the recommended design and testing guidelines for high-reliability applications. Consult with Tamura Corporation of America for specific guidance.
-
Consult the troubleshooting guide provided by Tamura Corporation of America or contact their technical support team for assistance.
Trust Checks
Expert Contribution
System Verified
Community Approved
3FD-320 Overview

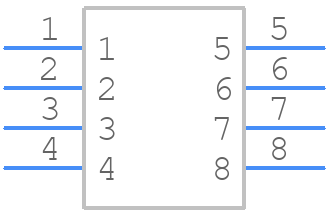

Use the download button to access the 3FD-320 schematic symbol, PCB footprint, and 3D model.
