3FD-324 - Tamura

Description: Transformer - PC Mount - 2.4VA - PRI: 115/230VAC - 50/60Hz - SEC: 12.0-CT-12.0 @ .10A.

Download 3FD-324 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

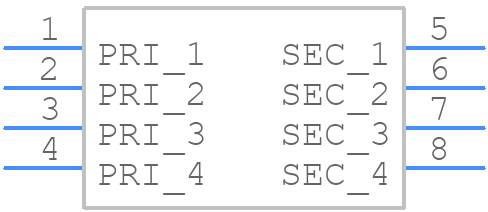

3FD-324 - Tamura - PCB symbol
click to zoom
PCB Footprints

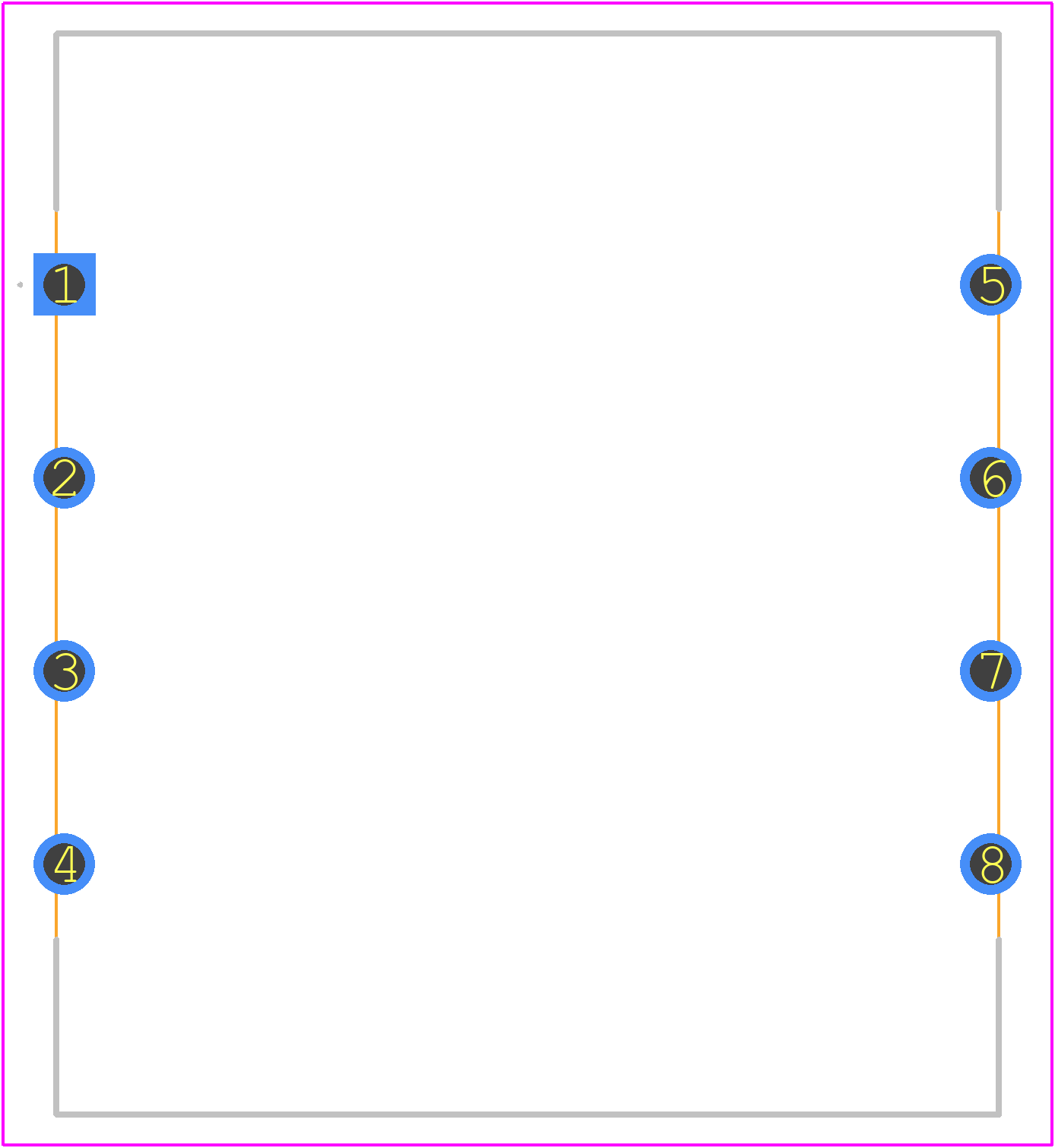

3FD-324 - Tamura PCB footprint - Other - Other - 3FD-324-1
click to zoom
3D Models
3FD-324 - Tamura - 3D model - Other - 3FD-324-1
click to zoom

3FD-324 Details

  • Manufacturer Part Number:

    3FD-324

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Tamura Corporation of America

  • YTEOL:

    6.26

  • Additional Feature:

    PCB MOUNTABLE

  • Approvals:

    UL; CSA

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.1 A

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    2.4 VA

3FD-324 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and electromagnetic interference (EMI).
  • Provide adequate heat sinking and ensure good airflow around the device. Avoid placing components that generate excessive heat near the 3FD-324. Consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • Exceeding the maximum ratings can lead to reduced lifespan, permanent damage, or even catastrophic failure. Ensure that the device operates within the specified voltage, current, and temperature ranges to maintain reliability and performance.
  • Start by verifying the power supply voltage and current. Check for proper PCB layout and component placement. Use an oscilloscope to inspect the input and output waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • Yes, the 3FD-324 is susceptible to electromagnetic interference (EMI). Use shielding, filtering, and grounding techniques to minimize EMI. Ensure that the PCB layout and component placement follow good EMI/EMC design practices.
