Tamura recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. The datasheet provides a suggested PCB layout, but it's essential to consult with Tamura's application notes and experienced engineers for optimal design.
Proper thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to dissipate heat. Monitor the device's temperature using the built-in thermal monitoring feature or an external temperature sensor.
Exceeding the maximum input voltage rating can cause permanent damage to the device. Tamura recommends using voltage protection circuits, such as TVS diodes or voltage regulators, to prevent overvoltage conditions. Consult with Tamura's application notes for guidance on designing overvoltage protection circuits.
Start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and current. Consult Tamura's application notes and technical support for further assistance.
Yes, the 3FD-410 is a switching regulator, which can generate electromagnetic interference (EMI). Follow proper PCB layout and design practices, such as using a solid ground plane, separating analog and digital circuits, and using EMI filters or shielding. Consult with Tamura's application notes and EMI/EMC experts for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
3FD-410 Overview

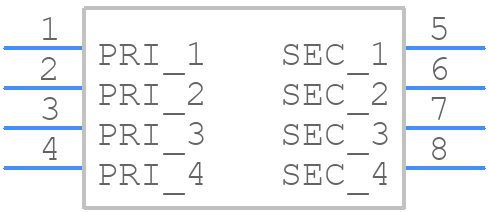

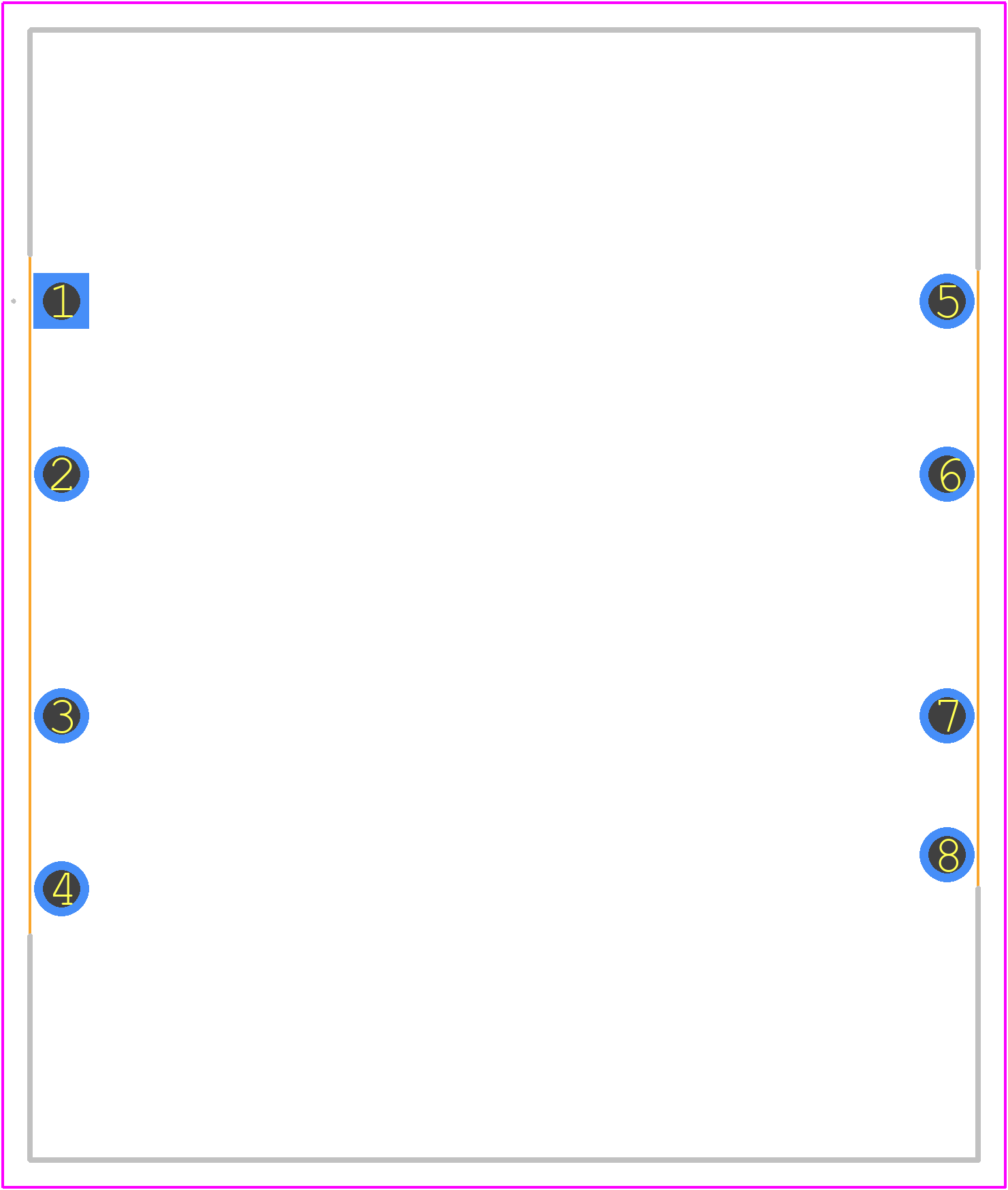

Use the download button to access the 3FD-410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3FD-4,
or try a keyword search, such as Power/Mains Transformers
