- Part Number 3FD-512
- Manufacturer Tamura
- Pin Count 10
- Part Category Transformer
- Package Category Other
- Footprint Name Other - 3FD-512-1
- Released Date Apr 3, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3FD-512 Details
-
Manufacturer Part Number:
3FD-512
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Tamura Corporation of America
-
YTEOL:
6.26
-
Additional Feature:
PCB MOUNTABLE
-
Approvals:
UL; CSA
-
Number of Secondary Winding:
2
-
Output Current 1:
1 A
3FD-512 Frequently Asked Questions (FAQs)
-
Tamura provides a recommended PCB layout guidelines in their application notes, which can be found on their website. It's essential to follow these recommendations to minimize noise and ensure optimal performance.
-
Tamura provides a filter selection guide in their datasheet. Engineers should consider factors such as output voltage, current, and frequency to select the appropriate filter. Additionally, Tamura's application engineers can provide guidance on filter selection.
-
According to Tamura's application notes, the maximum allowed voltage deviation on the input pins is ±10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
-
The 3FD-512 is rated for operation up to 85°C. However, Tamura recommends derating the output power and current at higher temperatures to ensure reliable operation. Consult Tamura's application notes for guidance on high-temperature operation.
-
The typical startup time for the 3FD-512 is around 10-15 ms, according to Tamura's datasheet. However, this time may vary depending on the specific application and input conditions.
Trust Checks
Community Provided
System Verified
Community Approved
3FD-512 Overview

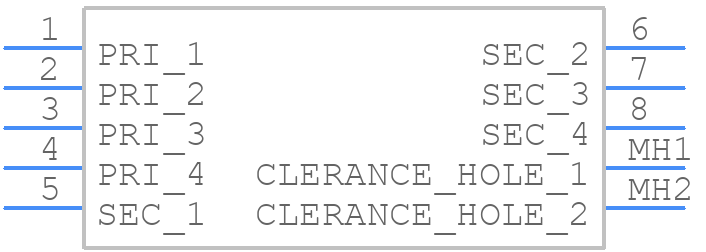

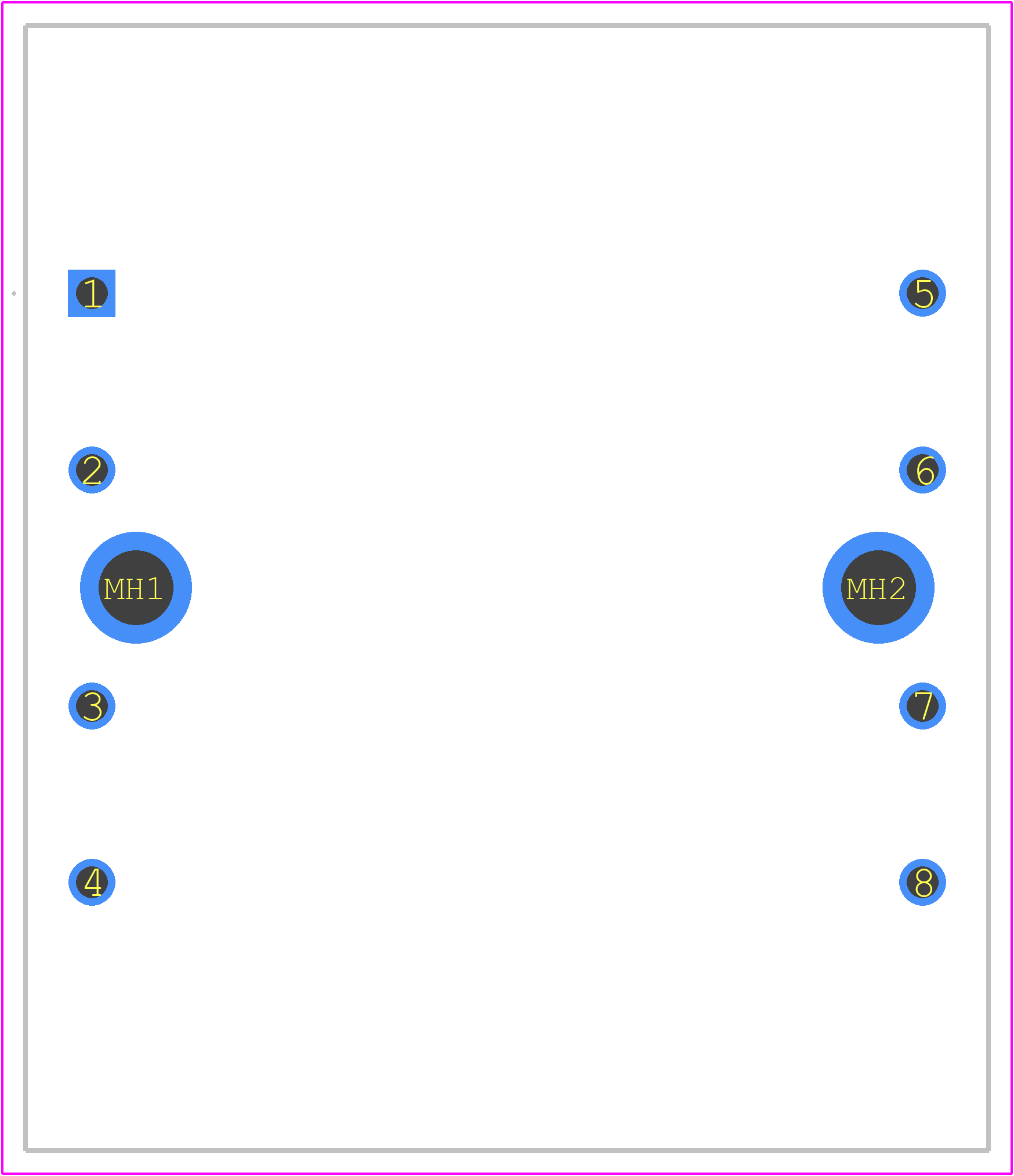

Use the download button to access the 3FD-512 schematic symbol, PCB footprint, and 3D model.
