- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 3FD-536
- Part Number 3FD-536
- Manufacturer Tamura
- Pin Count 8
- Part Category Transformer
- Package Category Other

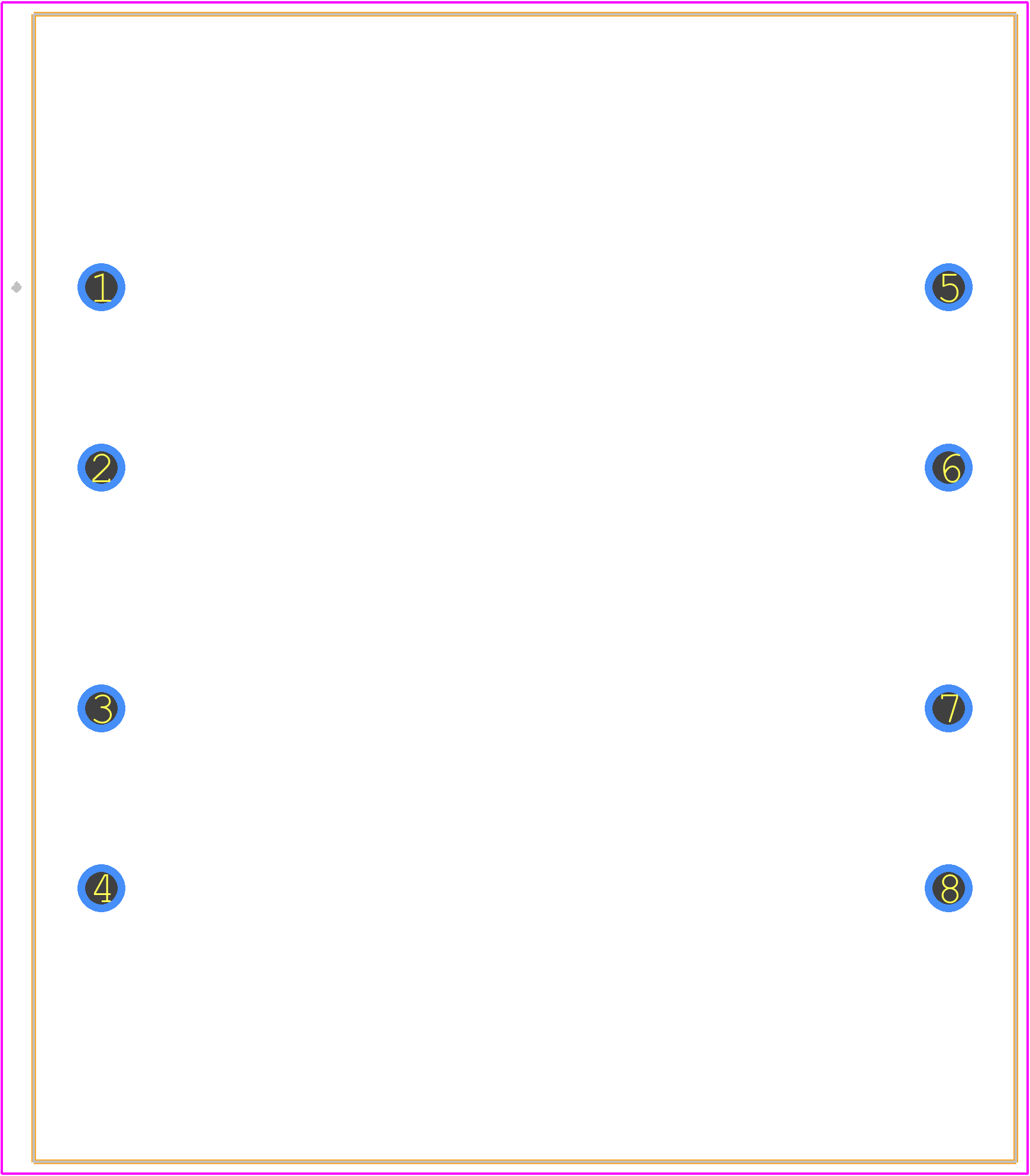

- Footprint Name Other - 3FD-536-2
- Released Date Jan 15, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3FD-536 Details
-
Manufacturer Part Number:
3FD-536
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Tamura Corporation of America
-
YTEOL:
6.26
-
Additional Feature:
PCB MOUNTABLE
-
Approvals:
UL; CSA
-
Number of Secondary Winding:
2
-
Output Current 1:
0.35 A
Trust Checks
Expert Contribution
System Verified
Community Approved
3FD-536 Overview
Use the download button to access the 3FD-536 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3FD-5,
or try a keyword search, such as Power/Mains Transformers
