- Part Number 3FS-312
- Manufacturer Tamura
- Pin Count 6
- Part Category Transformer
- Package Category Other

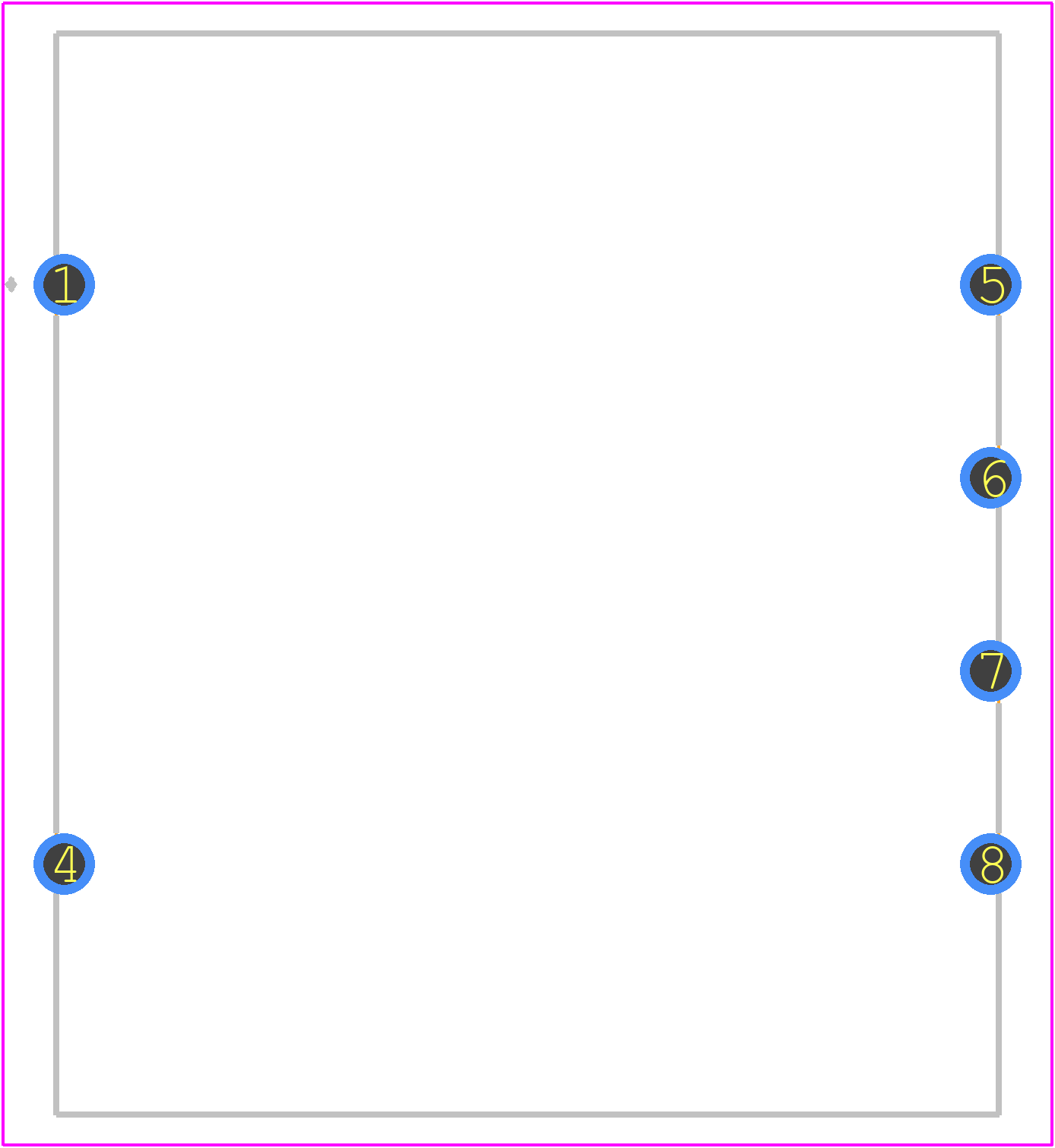

- Footprint Name Other - 3FS-312-2
- Released Date Feb 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
3FS-312 Details
-
Manufacturer Part Number:
3FS-312
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Tamura Corporation of America
-
YTEOL:
6.26
-
Additional Feature:
PCB MOUNTABLE
-
Approvals:
UL; CSA
-
Number of Secondary Winding:
2
-
Output Current 1:
0.2 A
3FS-312 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output stages separate to minimize noise coupling.
-
Provide adequate heat sinking and ensure good airflow around the device. Avoid operating the device in high-temperature environments or with inadequate cooling.
-
The device can withstand voltage transients up to 100 V for 100 ns, but repeated exposure may affect reliability. Implement proper surge protection and filtering to minimize transients.
-
Yes, but ensure you follow Tamura's recommended design and manufacturing guidelines. Additionally, perform thorough testing and validation to ensure the device meets your specific reliability and safety requirements.
-
Check for proper power supply decoupling, ensure correct pin connections, and verify that the device is operated within its specified parameters. Consult Tamura's application notes and technical support for further assistance.
Trust Checks
Expert Contribution
System Verified
Community Approved
3FS-312 Overview

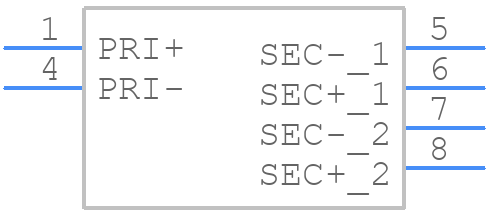

Use the download button to access the 3FS-312 schematic symbol, PCB footprint, and 3D model.
