Part Image

3FS-412 - Tamura

Description: PWR XFMR LAMINATED 6VA TH

Download 3FS-412 Model

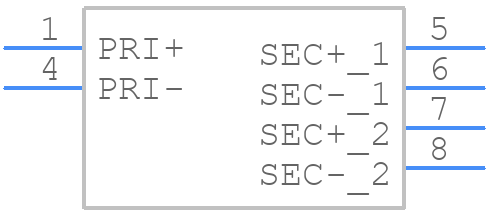

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

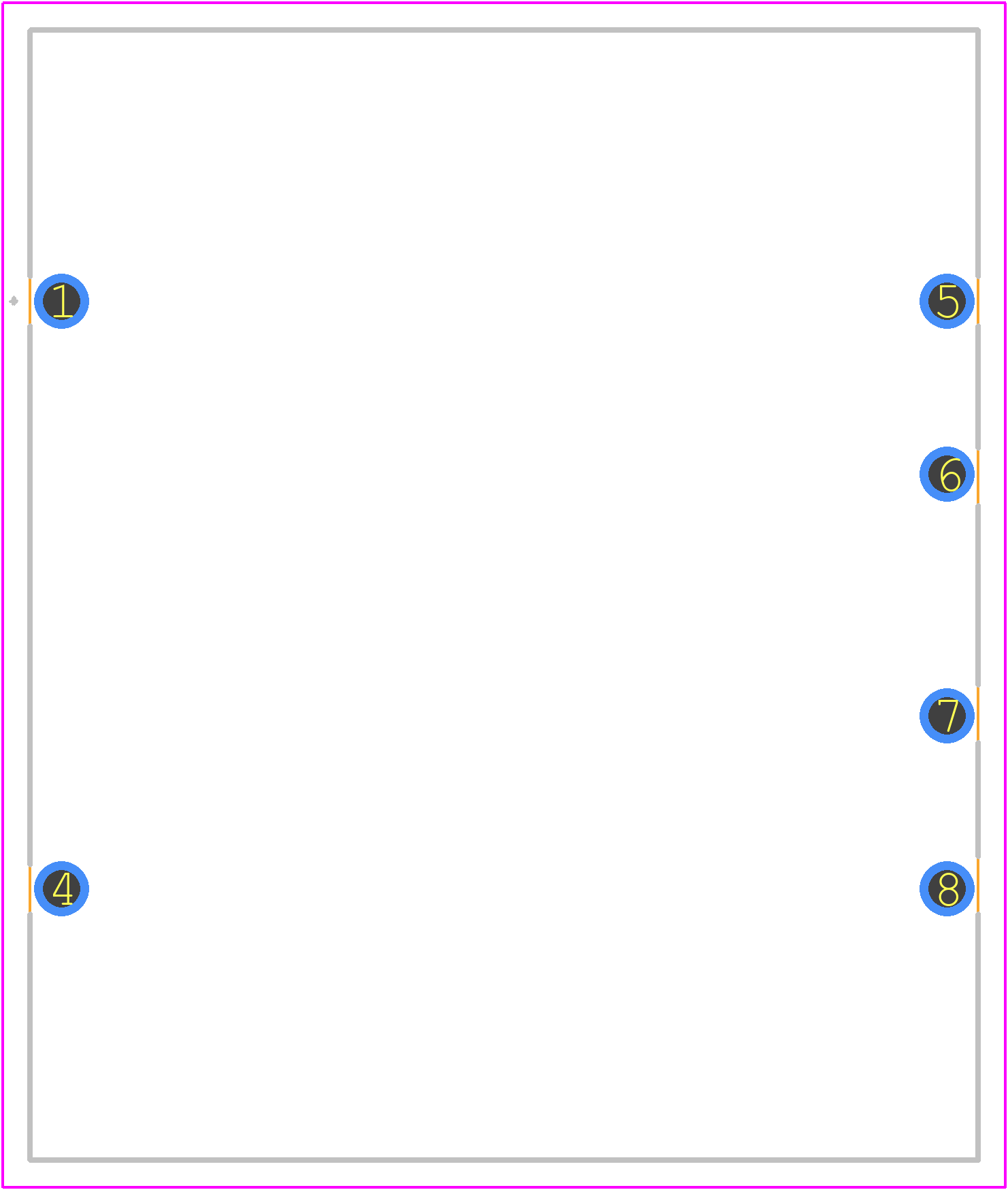

3FS-412 - Tamura PCB footprint - Other - Other - 3FS-412-2
click to zoom
3D Models
3FS-412 - Tamura  - 3D model - Other - 3FS-412-2
click to zoom

3FS-412 Details

  • Manufacturer Part Number:

    3FS-412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Tamura Corporation of America

  • YTEOL:

    6.26

  • Additional Feature:

    PCB MOUNTABLE

  • Approvals:

    UL; CSA

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    6 VA

3FS-412 Frequently Asked Questions (FAQs)

  • Tamura recommends a symmetrical PCB layout with a solid ground plane to minimize noise and electromagnetic interference. A minimum of 2oz copper thickness is recommended for the PCB.
  • The 3FS-412 has a thermal pad on the bottom of the package. Ensure good thermal contact with a heat sink or a metal core PCB. Apply a thin layer of thermal interface material (TIM) to the thermal pad before attaching the heat sink.
  • The 3FS-412 can withstand voltage transients up to 1.5 times the maximum rated voltage for a duration of 100ms. However, it's recommended to use a TVS diode or a voltage clamp to protect the device from voltage spikes.
  • The 3FS-412 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consider using a heat sink or a cooling system to maintain a safe operating temperature.
  • Use an oscilloscope to monitor the input and output waveforms. Check for proper power supply voltage, decoupling, and PCB layout. Consult the datasheet and application notes for troubleshooting guidelines specific to the 3FS-412.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3FS-412 Overview

Use the download button to access the 3FS-412 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3FS-4, or try a keyword search, such as Power/Mains Transformers
