3SBC-3-F footprint, schematic symbol and 3D model by Bivar

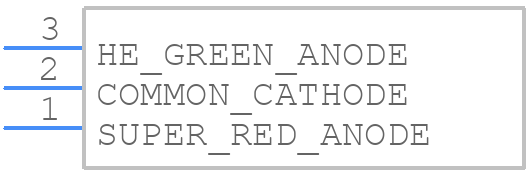

Symbol

PCB Footprints

3D Models

3SBC-3-F Details

The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Yes, the 3SBC-3-F is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the component to prevent mechanical stress and damage.
Yes, the 3SBC-3-F is compatible with lead-free soldering processes. Bivar Inc ensures that their components meet the requirements for lead-free and RoHS compliance.
The maximum operating temperature range for the 3SBC-3-F is -40°C to 85°C (-40°F to 185°F). Operating the component outside this range may affect its performance and reliability.
The 3SBC-3-F is designed to operate in normal humidity environments. However, it's not recommended for use in extremely humid or high-moisture environments without proper protection, such as conformal coating or sealing.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 3SBC-3-F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 3SBC-, or try a keyword search, such as Visible LEDs
