Part Image

4-1393243-3 - TE Connectivity

Description: Body Features: Product Weight .459 OZ | Insulation Special Features Tracking Index of Relay Base PTI250 | Product Weight 13 G | Contact Features: Contact Material AgSnO | Contact Arrangement 2 Form C (CO) | Contact Number of Poles 2 | Contact Current Rating (Max) 8 AMP | Contact Current Class 16 AMP | Dimensions: Product Length 1.14 INCH | Product Length 29 MM | Product Width 12.7 MM | Insulation Clearance Between Contact & Coil 10 MM | Width Class (Mechanical) 12 – 16 MM | Product Height 15.7 MM | Produc

Download 4-1393243-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4-1393243-3 - TE Connectivity - PCB symbol
click to zoom

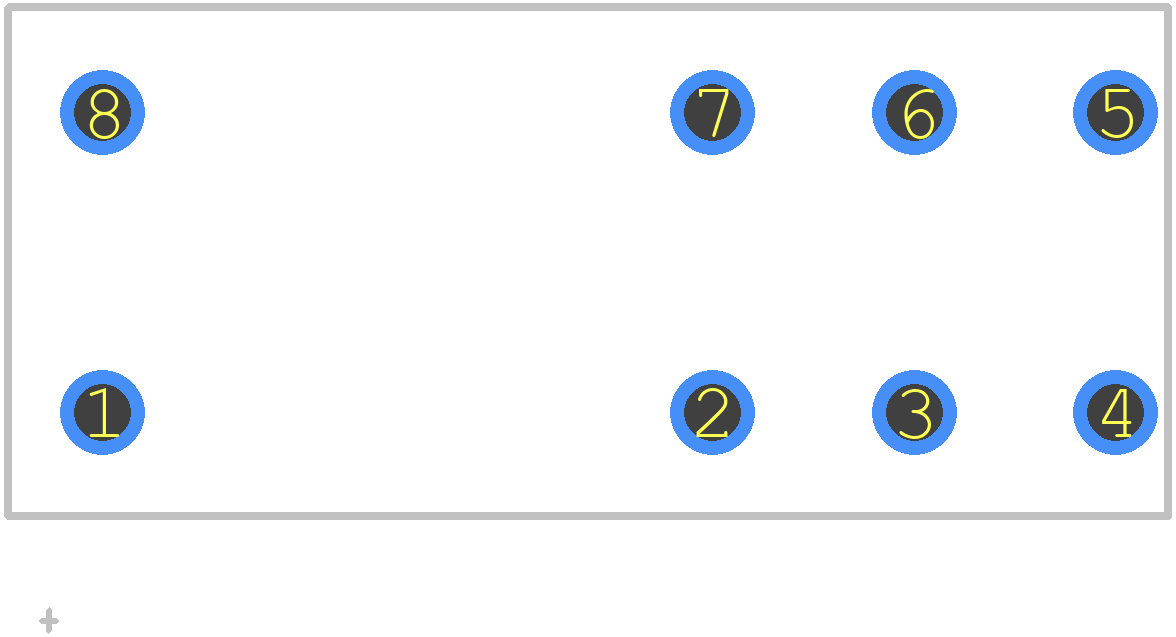

PCB Footprints
4-1393243-3 - TE Connectivity PCB footprint - Other - Other - 4-1393243-3
click to zoom
3D Models
4-1393243-3 - TE Connectivity - 3D model - Other - 4-1393243-3
click to zoom

4-1393243-3 Details

  • Manufacturer Part Number:

    4-1393243-3

  • Brand Name:

    Schrack

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.9

  • Additional Feature:

    COIL OPERATE VOLTAGE(AC): 172.5, COIL RELEASE VOLTAGE(AC): 34.5

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(AC)-Max:

    0.003 A

  • Coil Power:

    750 mW

  • Coil Resistance:

    32500 Ω

  • Coil Voltage(AC)-Max:

    230 V

  • Coil/Input Supply Type:

    AC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • End Contact Material:

    SILVER TIN ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    70 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    13 g

4-1393243-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 4-1393243-3 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
  • Yes, the 4-1393243-3 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
  • The 4-1393243-3 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific environmental requirements of your application.
  • The 4-1393243-3 connector is rated for a minimum of 500 mating cycles. However, this can vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform testing to determine the connector's performance in your specific use case.
  • The 4-1393243-3 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or contact their technical support to ensure seamless integration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4-1393243-3 Overview

Use the download button to access the 4-1393243-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4-139, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
