4-1393789-5 - TE Connectivity

Description: Signal Relay 12VDC 2A DPDT(14.6x9.4x9.9)mm SMD Automotive Medical

Download 4-1393789-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

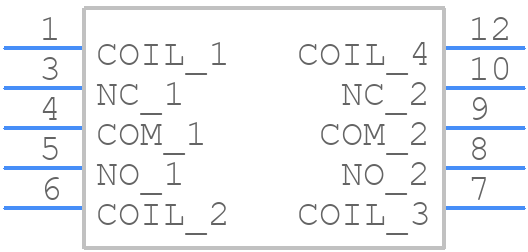

4-1393789-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
4-1393789-5 - TE Connectivity PCB footprint - Other - Other - 4-1393789-5-1
click to zoom
3D Models
4-1393789-5 - TE Connectivity - 3D model - Other - 4-1393789-5-1
click to zoom

4-1393789-5 Details

  • Manufacturer Part Number:

    4-1393789-5

  • Brand Name:

    CII

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    23 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.2

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • Relay Type:

    POWER/SIGNAL RELAY

  • Weight:

    2.8 g
