Part Image

4-1571552-9 - TE Connectivity

Description: IC Socket DIP28 2.54mm

Download 4-1571552-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

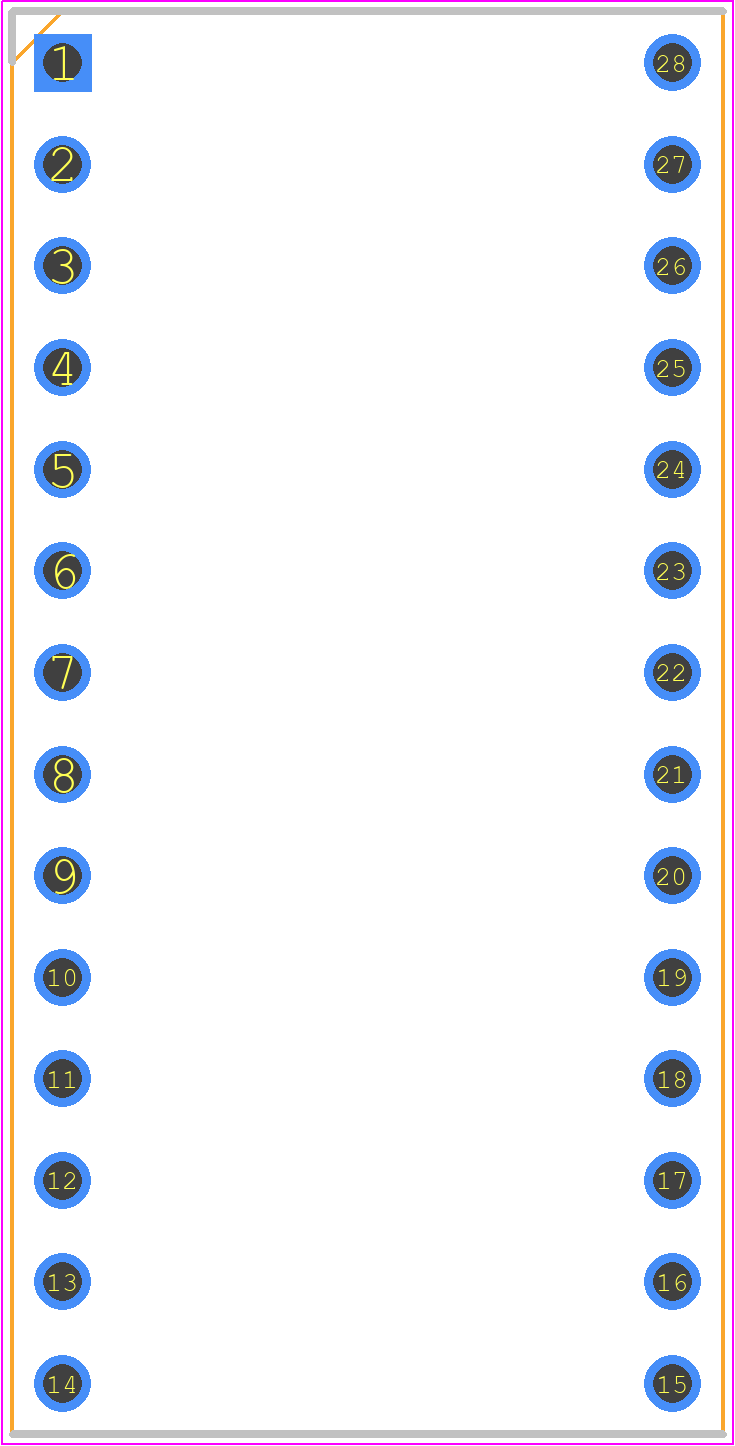

4-1571552-9 - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 4-1571552-9
click to zoom
3D Models
4-1571552-9 - TE Connectivity  - 3D model - Dual-In-Line Sockets - 4-1571552-9
click to zoom

4-1571552-9 Details

  • Manufacturer Part Number:

    4-1571552-9

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.18 inch

  • Body Length:

    1.4 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    PCT-PLASTIC POLYESTER

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4-1571552-9 Overview

Use the download button to access the 4-1571552-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4-157, or try a keyword search, such as Sockets and Chip Carriers

Parts related to 4-1571552-9

Showing 0 results

4-1571552-9 Alternates

Showing results

Image Part Number Model
Part Image 9-1437539-2 TE Connectivity

IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 15.24mm Row Spacing, Solder

Part Image 528-AG11D Thomas & Betts

IC Socket, DIP28, 28 Contact(s)

Part Image 1571552-9 TE Connectivity

IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 15.24mm Row Spacing, Solder

Part Image 828-AG12D-ES-LF TE Connectivity

IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 15.24mm Row Spacing, Solder
