4-1734376-8 - TE Connectivity

Description: USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Surface Mount, Right Angle; Through Hole

Download 4-1734376-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4-1734376-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

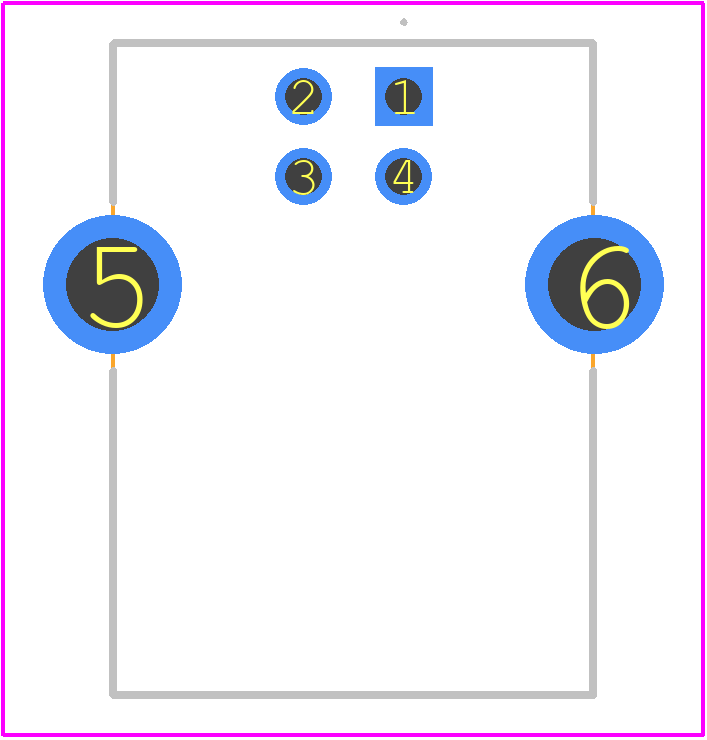

4-1734376-8 - TE Connectivity PCB footprint - Other - Other - 4-1734376-8-2
click to zoom
3D Models
4-1734376-8 - TE Connectivity - 3D model - Other - 4-1734376-8-2
click to zoom

4-1734376-8 Details

  • Manufacturer Part Number:

    4-1734376-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.418 inch

  • Body Depth:

    0.642 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    USB2.0 B

  • DIN Conformance:

    NO

  • Durability:

    1500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Operating Temperature-Max:

    50 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    PHOSPHOR BRONZE

  • Terminal Length:

    0.115 inch

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

4-1734376-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 4-1734376-8 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque specifications.
  • Yes, the 4-1734376-8 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
  • The 4-1734376-8 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • The 4-1734376-8 connector is rated for a minimum of 500 mating cycles. However, this can vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform testing to determine the connector's performance in your specific use case.
  • The 4-1734376-8 connector is designed to be compatible with other TE Connectivity products and some third-party connectors. However, it's essential to verify compatibility before using the connector in your application. Consult TE Connectivity's documentation and perform testing to ensure compatibility and reliable connections.
