Part Image

4-1775099-2 - TE Connectivity

Description: TE CONNECTIVITY - 4-1775099-2 - ATX PWR CONN 8 POS

Download 4-1775099-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4-1775099-2 - TE Connectivity - PCB symbol
click to zoom

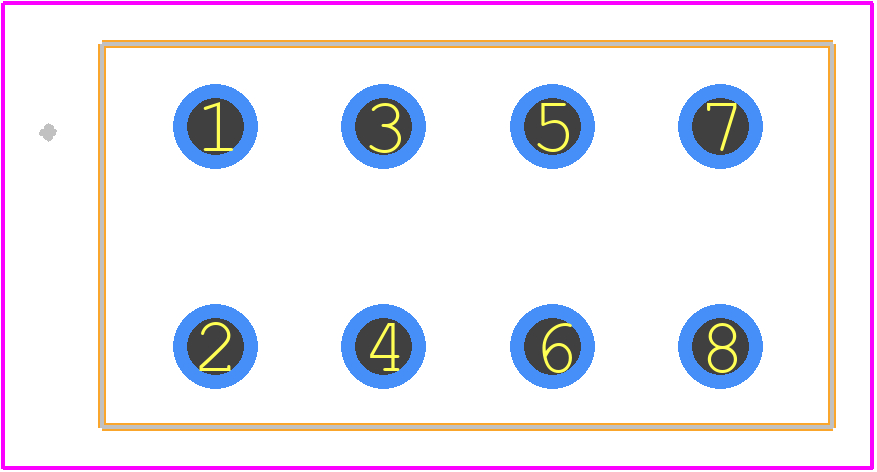

PCB Footprints
4-1775099-2 - TE Connectivity PCB footprint - Other - Other - 4-1775099-2-2
click to zoom
3D Models
4-1775099-2 - TE Connectivity - 3D model - Other - 4-1775099-2-2
click to zoom

4-1775099-2 Details

  • Manufacturer Part Number:

    4-1775099-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    IVORY

  • Insulator Material:

    POLYAMIDE9T

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    9A

  • Mating Contact Row Spacing:

    0.165 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    120.07u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    9 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

4-1775099-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 4-1775099-2 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for precise torque values.
  • Yes, the 4-1775099-2 connector is designed to withstand high-vibration environments. Its rugged construction and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The 4-1775099-2 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application requirements and potential thermal stress on the connector.
  • Yes, the 4-1775099-2 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories. However, it's essential to verify compatibility before integrating the connector into your design.
  • The 4-1775099-2 connector has an IP67 rating, which means it provides protection against solid objects and water immersion up to 1 meter (3.3 feet) for 30 minutes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4-1775099-2 Overview

Use the download button to access the 4-1775099-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4-177, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
