4-1825010-2 - TE Connectivity

Description: Body Features: Actuator Travel .11 INCH | Product Orientation Vertical | Actuator Orientation Top | Actuator Profile Extended | Actuator Material Nylon | Actuator Travel 2.79 MM | Actuator Color Natural | Configuration Features: Operating Function On On | Number of Positions 6 | Configuration (Pole-Throw) Six Pole - Double Throw | Number of Actuators Single | Contact Features: Contact Current Rating .3 AMP | Contact Base Material Copper Alloy | Switch Contact Plating Material Silver | Dimensions: Product Le

Download 4-1825010-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

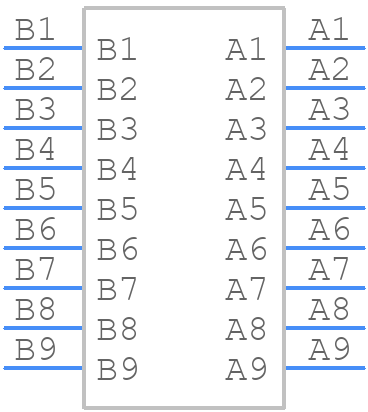

Symbol
4-1825010-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
4-1825010-2 - TE Connectivity PCB footprint - Other - Other - 4-1825010-2-4
click to zoom
3D Models
4-1825010-2 - TE Connectivity - 3D model - Other - 4-1825010-2-4
click to zoom

4-1825010-2 Details

  • Manufacturer Part Number:

    4-1825010-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.95

  • Actuator Color:

    NATURAL

  • Actuator Length:

    0.11 inch

  • Actuator Material:

    NYLON

  • Actuator Travel:

    2.794 mm

  • Actuator Type:

    EXTENDED TOP TYPE

  • Body Breadth:

    7.37 mm

  • Body Height:

    4.46 mm

  • Body Length or Diameter:

    25.4 mm

  • Center Contact Plating:

    SILVER

  • Contact (AC) Max Rating R Load:

    .3A@115VAC

  • Contact Current(AC)-Max:

    0.3 A

  • Contact Current(DC)-Max:

    0.3 A

  • Contact (DC) Max Rating R Load:

    .3A@115VDC

  • Contact Function:

    ON-ON

  • Contact Voltage(AC)-Max:

    115 V

  • Contact Voltage(DC)-Max:

    28 V

  • Electrical Life:

    15000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Number of Positions:

    2

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    6PDT

  • Switch Type:

    SLIDE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

4-1825010-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the specific connector series.
  • Yes, the 4-1825010-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for applications such as industrial control systems, transportation, and more.
  • The 4-1825010-2 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humidity up to 95% RH. However, it's essential to ensure that the connector is properly sealed and protected from environmental factors to maintain its performance and reliability.
  • The 4-1825010-2 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • The 4-1825010-2 connector is part of the AMPSEAL 16 connector series, which is designed to be compatible with other connectors in the same series. However, it's essential to verify compatibility with specific connectors and applications to ensure proper mating and performance.
