4-2177367-3 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code A | Configuration Features: Number of Rows 2 | Number of Positions 20 | Number of Signal Positions 20 | PCB Mount Orientation Horizontal | Number of Sections 1 | Contact Features: Contact Mating Area Plating Material Tin | Contact Size .5mm | Mating Tab Width .02 INCH | Mating Tab Width .5 MM | Mating Tab Thickness .4 MM | Contact Type Tab | Mating Tab Thickness .016 INCH | Dimensions: Connector Width .963 INCH | Connector Length 27.25 MM

Download 4-2177367-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

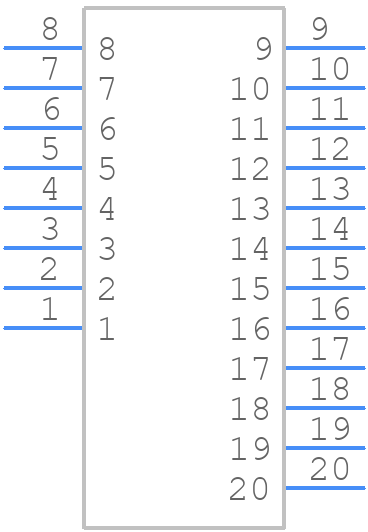

4-2177367-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

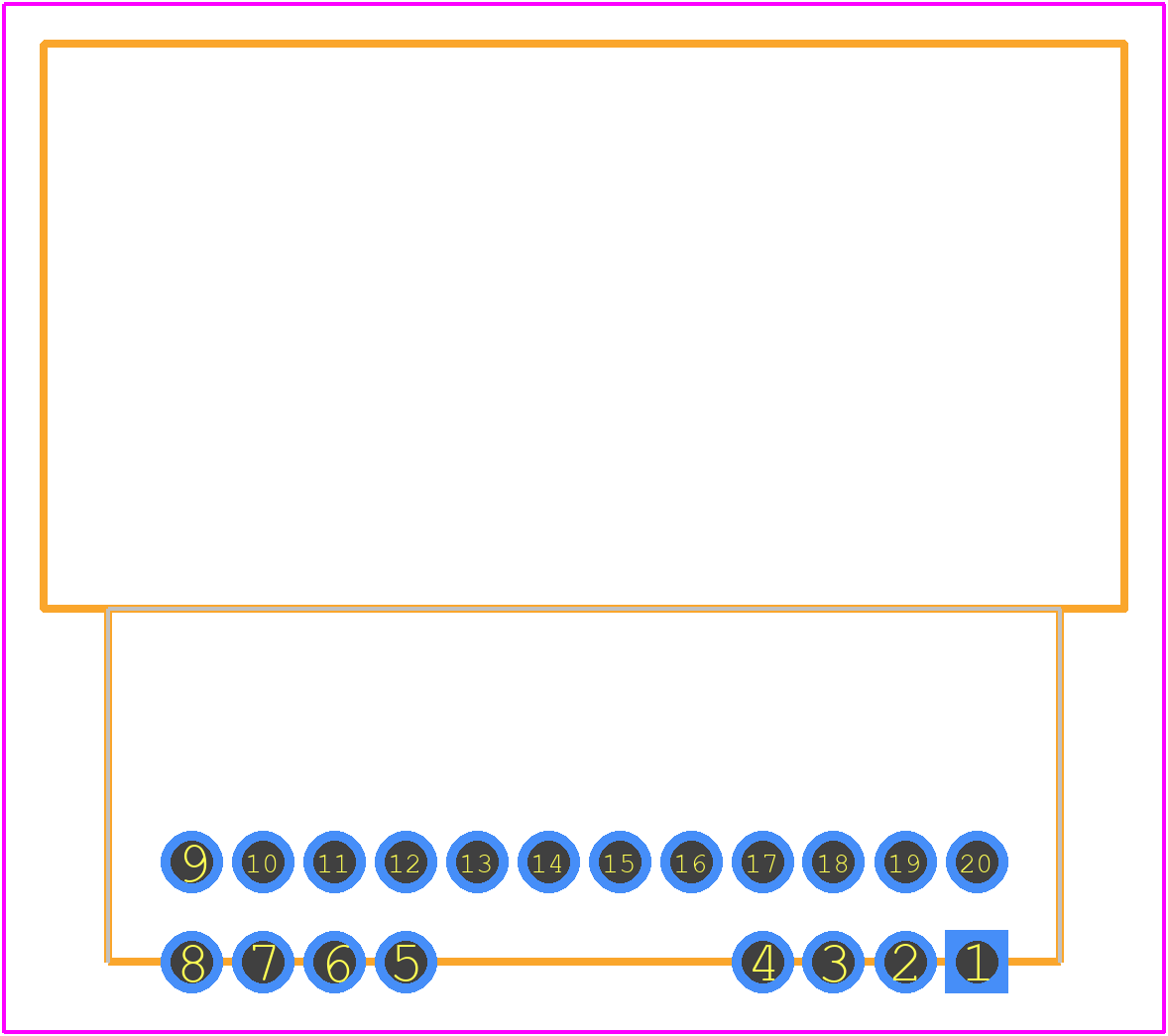

4-2177367-3 - TE Connectivity PCB footprint - Other - Other - 4-2177367-3
click to zoom
3D Models
4-2177367-3 - TE Connectivity - 3D model - Other - 4-2177367-3
click to zoom

4-2177367-3 Details

  • Manufacturer Part Number:

    4-2177367-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.8

  • Connector Type:

    BOARD CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4-2177367-3 Overview

Use the download button to access the 4-2177367-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4-217, or try a keyword search, such as Headers and Edge Type Connectors
