4-5435640-1 - TE Connectivity

Description: TE CONNECTIVITY / ALCOSWITCH - 4-5435640-1 - SWITCH, DIP, 10 POSITION, SPST, ROCKER

Download 4-5435640-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

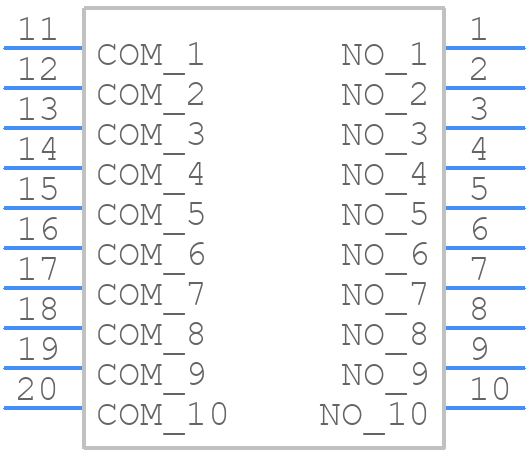

4-5435640-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

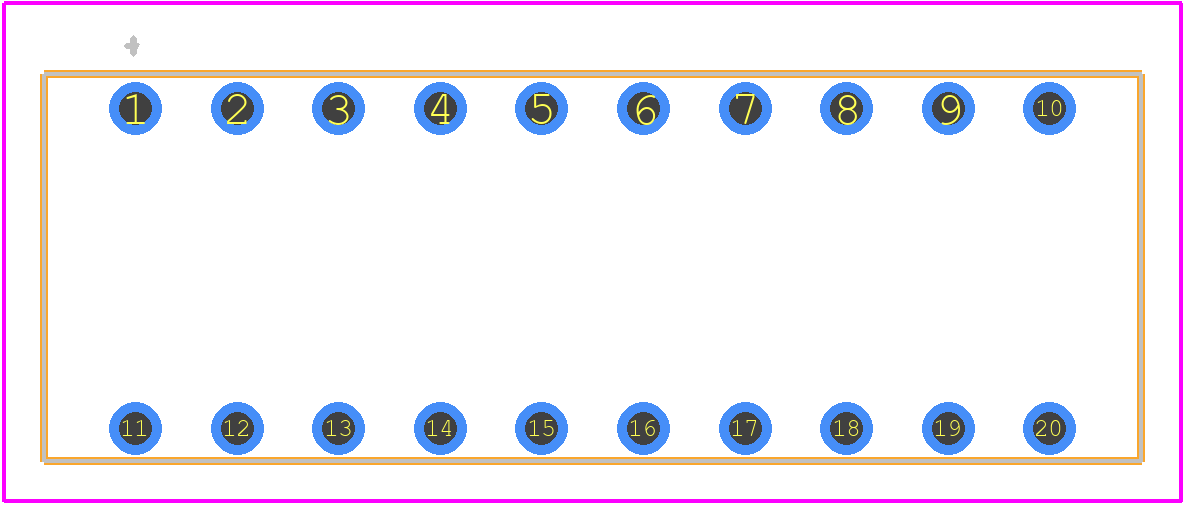

4-5435640-1 - TE Connectivity PCB footprint - Other - Other - 4-5435640-1-8
click to zoom
3D Models
4-5435640-1 - TE Connectivity - 3D model - Other - 4-5435640-1-8
click to zoom

4-5435640-1 Details

  • Manufacturer Part Number:

    4-5435640-1

  • Brand Name:

    Alcoswitch

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Actuator Type:

    TOP ROCKER

  • Body Breadth:

    9.65 mm

  • Body Height:

    8.64 mm

  • Body Length or Diameter:

    27.43 mm

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact Voltage(DC)-Max:

    40 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    TIN

  • Housing Material:

    GLASS FILLED POLYESTER

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    10

  • Number of Switch Sections:

    10

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Length:

    0.14 inch

  • Termination Type:

    WIRE
