40-6518-10 footprint, schematic symbol and 3D model by ARIES

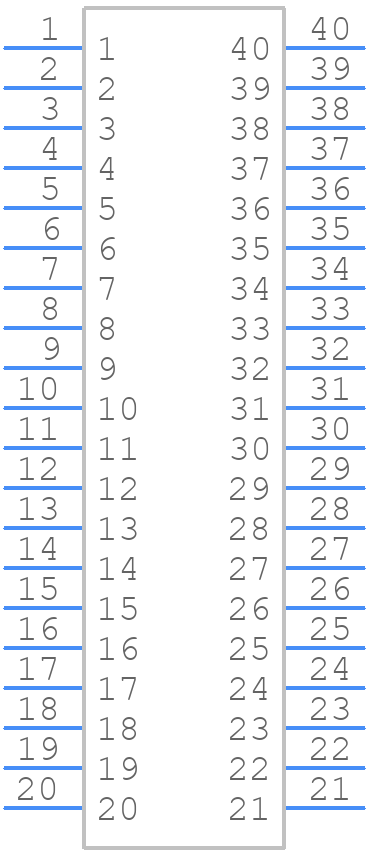

Symbol

click to zoom

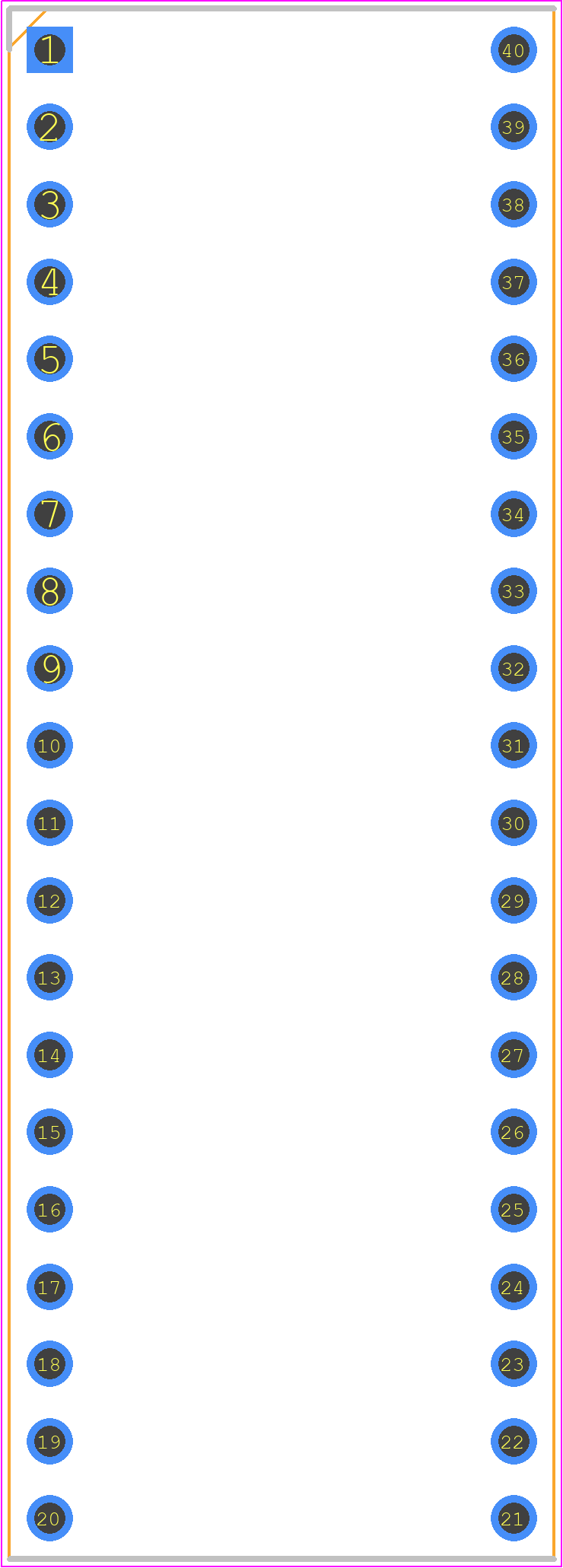

PCB Footprints

40-6518-10 - ARIES PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP40

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 40-6518-10
Part Number 40-6518-10
Manufacturer ARIES
Pin Count 40
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP40
Released Date Jul 13, 2023
Last Modified Date Jul 14, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

40-6518-10 Details

Manufacturer Part Number:
40-6518-10
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Aries Electronics Inc
YTEOL:
7.3
Additional Feature:
STANDARD: UL 94V-0
Body Breadth:
0.7 inch
Body Depth:
0.165 inch
Body Length:
4 inch
Contact Configuration:
RECTANGLE
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
BRASS
Contact Style:
RND PIN-SKT
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP40
Housing Material:
NYLON46
JESD-609 Code:
e3
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
40
Operating Temperature-Max:
105 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.6000000000000001 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

40-6518-10 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
Yes, the 40-6518-10 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The 40-6518-10 is rated for operating temperatures from -40°C to 105°C and can withstand moderate humidity levels. However, it's recommended to consult with Aries Electronics Inc for specific environmental requirements.
The maximum current rating for each contact is 3A, but it's recommended to derate the current based on the specific application and environmental conditions.
The 40-6518-10 is suitable for both power and signal transmission applications, but the signal integrity and frequency response may vary depending on the specific use case.

Trust Checks

Community Provided

System Verified

Community Approved

40-6518-10 Overview

Use the download button to access the 40-6518-10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 40-65, or try a keyword search, such as Sockets and Chip Carriers
