The maximum switching frequency of the relay is 20 operations per minute.
The relay module is designed to operate in temperatures between -40°C and 85°C. However, it's recommended to derate the relay's performance at high temperatures (above 60°C) to ensure reliable operation.
The recommended wire size for the relay's coil connections is 0.5 mm² to 1.5 mm² (AWG 20 to AWG 16).
The relay module is designed to operate in environments with a relative humidity of up to 95% (non-condensing). However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or sealing the relay module in a protective enclosure.
The expected lifespan of the relay is 10^7 operations, with a minimum of 5 years or 10^5 hours, whichever comes first, under normal operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
40.52.8.024.0000 Overview

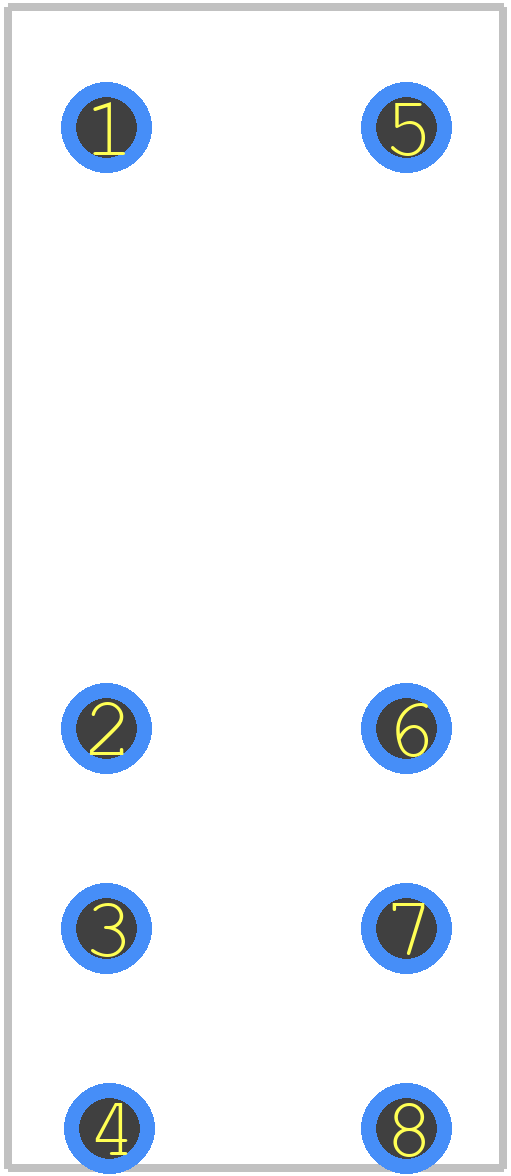

Use the download button to access the 40.52.8.024.0000 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 40.52,
or try a keyword search, such as Power/Signal Relays
