400AWMDP1R1BLKM6QE - E-Switch

Description: PUSHBUTTON, 100mA, 30VDC DPDT, On-On, Through Hole

Download 400AWMDP1R1BLKM6QE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 400AWMDP1R1BLKM6QE model

Email notifications will be applied after download.

Send part feedback

Symbol

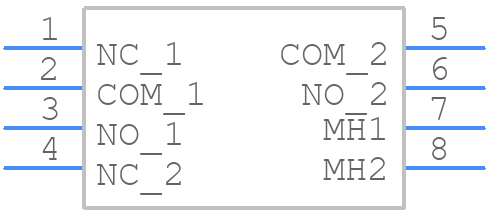

400AWMDP1R1BLKM6QE - E-Switch - PCB symbol

PCB Footprints

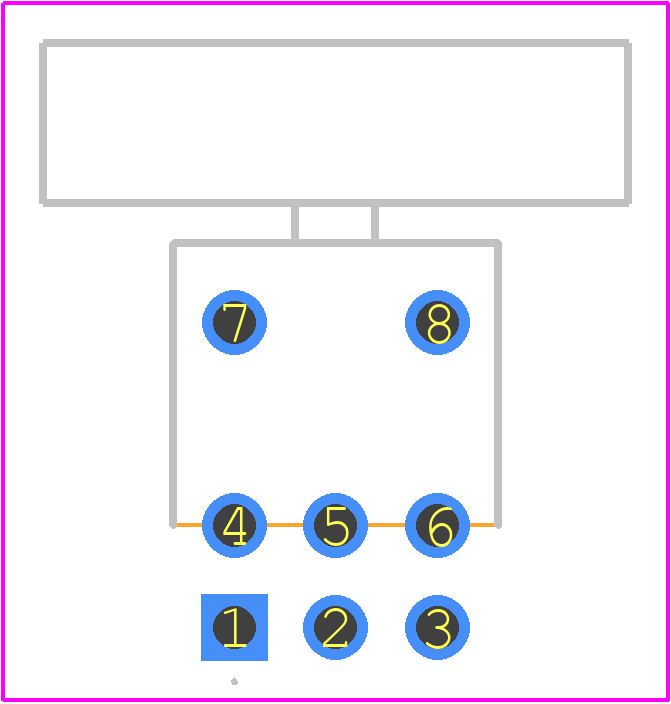

400AWMDP1R1BLKM6QE - E-Switch PCB footprint - Other - Other - 400AWMDP1R1BLKM6QE-2

3D Models

400AWMDP1R1BLKM6QE - E-Switch - 3D model - Other - 400AWMDP1R1BLKM6QE-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 400AWMDP1R1BLKM6QE
Part Number 400AWMDP1R1BLKM6QE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 400AWMDP1R1BLKM6QE-2
Released Date Jun 20, 2024
Last Modified Date Jul 27, 2026 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

400AWMDP1R1BLKM6QE Details

Manufacturer Part Number:
400AWMDP1R1BLKM6QE
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

400AWMDP1R1BLKM6QE Overview

Use the download button to access the 400AWMDP1R1BLKM6QE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 400AW, or try a keyword search, such as Rocker Switches
