400AWMDP1R1M6QE footprint, schematic symbol and 3D model by E-Switch

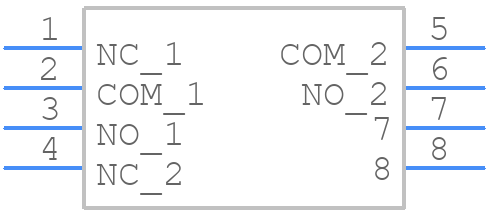

Symbol

PCB Footprints

3D Models

400AWMDP1R1M6QE Details

The recommended operating temperature range for the 400AWMDP1R1M6QE is -20°C to 85°C.
Yes, the 400AWMDP1R1M6QE is designed for high-reliability applications and meets the requirements for MIL-STD-202 and IEC 61076-2-1 standards.
The maximum switching frequency for the 400AWMDP1R1M6QE is 10 Hz.
Yes, the 400AWMDP1R1M6QE is compatible with lead-free soldering processes and meets the requirements for RoHS and REACH compliance.
The typical actuation force for the 400AWMDP1R1M6QE is 1.5 N ± 0.5 N.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 400AWMDP1R1M6QE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 400AW, or try a keyword search, such as Rocker Switches
