402-51101-51 - ept

Description: for all board-to-board distances, 220 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate up to 16+ Gbit/s, Parallel, SMT, High Density, High Speed

Download 402-51101-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
402-51101-51 - ept - PCB symbol
click to zoom
PCB Footprints

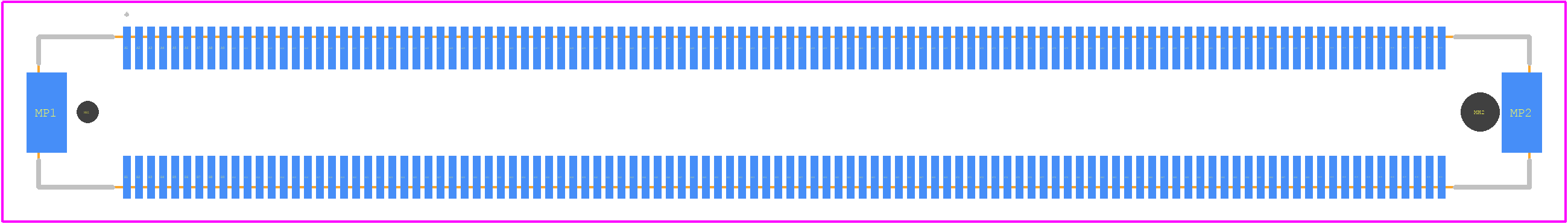

402-51101-51 - ept PCB footprint - Other - Other - Colibri Receptacle 220 402-51101-5
click to zoom
3D Models
402-51101-51 - ept - 3D model - Other - Colibri Receptacle 220 402-51101-5
click to zoom

402-51101-51 Details

  • Manufacturer Part Number:

    402-51101-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.68

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    220

  • UL Flammability Code:

    94V-0

402-51101-51 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application requirements and the ept Connectors' documentation for precise guidance.
  • Yes, the 402-51101-51 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The 402-51101-51 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure proper sealing and protection from extreme temperatures, moisture, and contaminants.
  • The 402-51101-51 connector is designed to operate within a temperature range of -40°C to 125°C. However, it's essential to consult the specific application requirements and the ept Connectors' documentation for precise guidance.
  • Yes, the 402-51101-51 connector is designed to be compatible with other ept Connectors' products. However, it's essential to ensure compatibility and consult the specific product documentation for precise guidance.
