The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm, but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
While the 403-51020-51 connector is designed to be robust, it's essential to evaluate the specific vibration requirements of your application. ept Connectors may have additional testing data or recommendations for vibration-prone environments; it's best to consult with their technical support.
The 403-51020-51 connector has a IP20 rating, which means it's protected against solid objects larger than 12.5 mm, but it's not designed for outdoor or harsh environmental use. If you need a connector for outdoor use, consider ept Connectors' products with higher IP ratings or consult with their technical support for custom solutions.
While the datasheet specifies a particular wire gauge and type, it's possible to use a different gauge or type with the 403-51020-51 connector. However, this may affect the connector's performance and reliability. It's recommended to consult with ept Connectors' technical support to ensure the desired wire configuration meets their specifications and guidelines.
The datasheet may not specify the maximum operating temperature range, but ept Connectors typically rates their connectors for operation between -40°C to 105°C. However, it's best to consult the manufacturer's application notes or contact their technical support for specific temperature range guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
403-51020-51 Overview

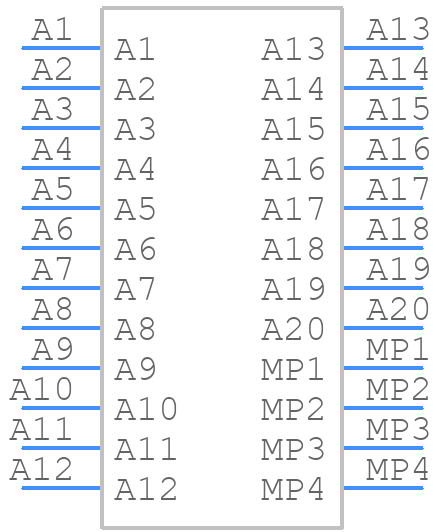

Use the download button to access the 403-51020-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 403-5,
or try a keyword search, such as Headers and Edge Type Connectors
