403-51026-51 - ept

Description: Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Side Entry SMD Reel

Download 403-51026-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

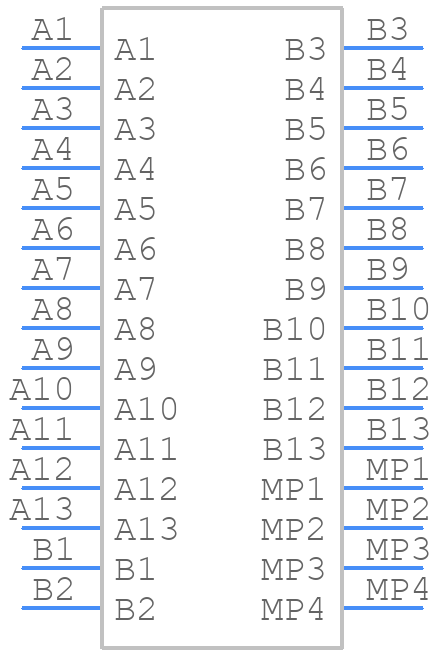

403-51026-51 - ept - PCB symbol
click to zoom
PCB Footprints
403-51026-51 - ept PCB footprint - Other - Other - 403-51026-51
click to zoom
3D Models
403-51026-51 - ept - 3D model - Other - 403-51026-51
click to zoom

403-51026-51 Details

  • Manufacturer Part Number:

    403-51026-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.75

  • Body Breadth:

    0.167 inch

  • Body Depth:

    0.394 inch

  • Body Length:

    0.85 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.27 mm

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

403-51026-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm, but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
  • While the 403-51026-51 connector is designed to be robust, it's essential to evaluate its performance in your specific high-vibration environment. Consult with ept Connectors' technical support to discuss your application and determine if additional testing or customization is required.
  • The datasheet may not specify the exact operating temperature range, but typically, ept Connectors' products are designed to operate within a range of -40°C to 125°C. However, it's best to verify this with the manufacturer or consult their application notes for specific temperature ratings.
  • While the 403-51026-51 connector is designed to be durable, its performance in harsh environments may vary. Consult with ept Connectors' technical support to discuss your specific application and determine if additional sealing or protection is required.
  • It's possible to use the 403-51026-51 connector with a different wire gauge or type, but it's crucial to evaluate the connector's performance and ensure it meets your application's requirements. Consult with ept Connectors' technical support to discuss your specific needs and determine if additional testing or customization is required.
