The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm, but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
Yes, the 403-51032-51 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6, but it's essential to ensure proper mounting and securing of the connector to prevent damage or disconnection.
The 403-51032-51 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to dust, but it's not designed for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation.
The 403-51032-51 connector is rated for operation between -40°C to 125°C, but it's essential to consider the temperature rating of the cables and other components in the system to ensure reliable operation.
The 403-51032-51 connector is designed for use with cables of specific gauges and materials, typically 24-20 AWG. Using cables with different gauges or materials may affect the connector's performance, reliability, or even cause damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
403-51032-51 Overview

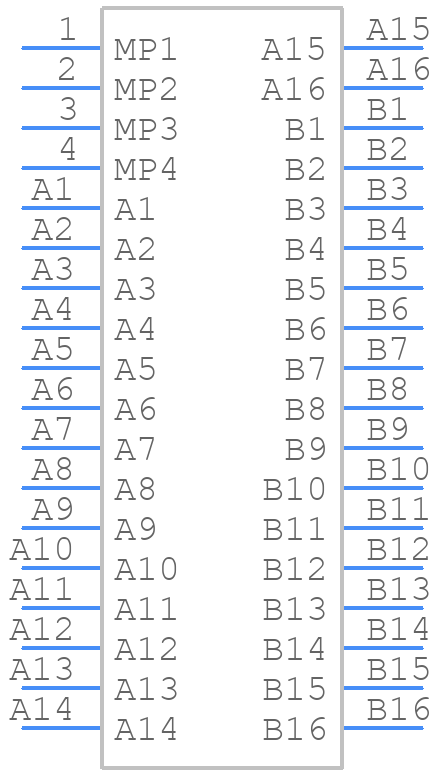

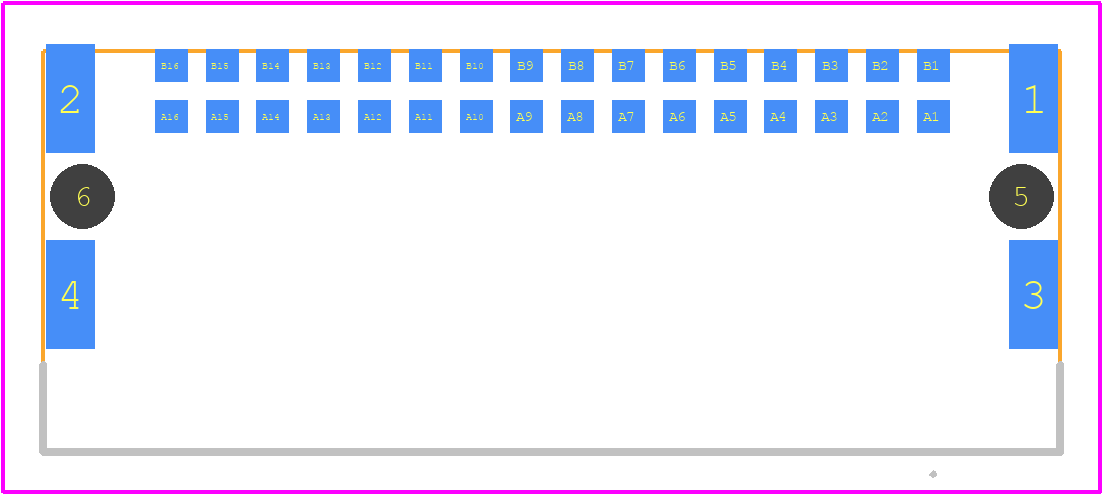

Use the download button to access the 403-51032-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 403-5,
or try a keyword search, such as Headers and Edge Type Connectors
