403-52016-51 - ept

Description: 16 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1, Parallel, Perpendicular, SMT, Cable-to-Board, High Density, Rugged

Download 403-52016-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

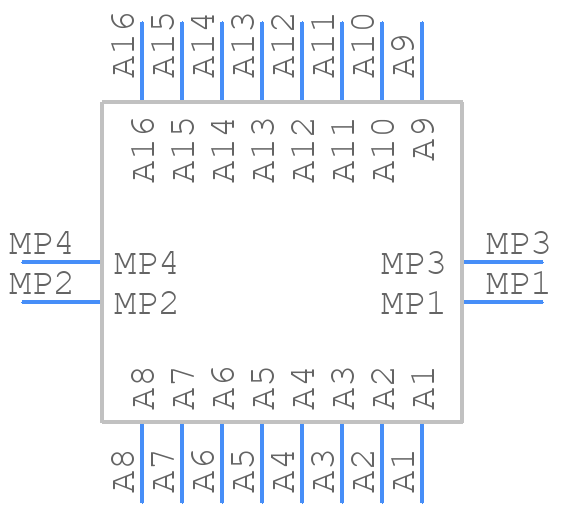

403-52016-51 - ept - PCB symbol
click to zoom
PCB Footprints
403-52016-51 - ept PCB footprint - Other - Other - 403-52016-51-2
click to zoom
3D Models
403-52016-51 - ept - 3D model - Other - 403-52016-51-2
click to zoom

403-52016-51 Details

  • Manufacturer Part Number:

    403-52016-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    9

  • Body Breadth:

    0.224 inch

  • Body Depth:

    0.266 inch

  • Body Length:

    0.6 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

403-52016-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm, but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
  • Yes, the 403-52016-51 connector is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and secure fastening to prevent damage or disconnection. Consult the manufacturer's environmental testing data for more information.
  • The 403-52016-51 connector has a IP67 rating, making it suitable for outdoor use and exposure to harsh environments, including dust, water, and extreme temperatures. However, it's crucial to follow proper sealing and installation procedures to maintain the IP rating.
  • The 403-52016-51 connector is rated for operation in temperatures ranging from -40°C to 125°C, but it's essential to consult the manufacturer's temperature derating charts for specific applications.
  • The 403-52016-51 connector is designed for use with specific wire gauges and types. Consult the manufacturer's documentation or contact their technical support to determine compatibility with your specific wire requirements.
