Description:40 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1, Parallel, Perpendicular, SMT, Cable-to-Board, High Density, Rugged
The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's guidelines or the datasheet for specific torque values.
Yes, the 403-52040-51 connector is designed to withstand high-vibration environments. ept Connectors uses a ruggedized design and secure screw terminals to ensure reliable connections even in harsh conditions.
The 403-52040-51 connector has an IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Consult the manufacturer's guidelines for outdoor or wet environment usage.
The 403-52040-51 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consult the datasheet or manufacturer's guidelines for specific temperature ratings, as they may vary depending on the application and environment.
Yes, the 403-52040-51 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental and health safety.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
403-52040-51 Overview

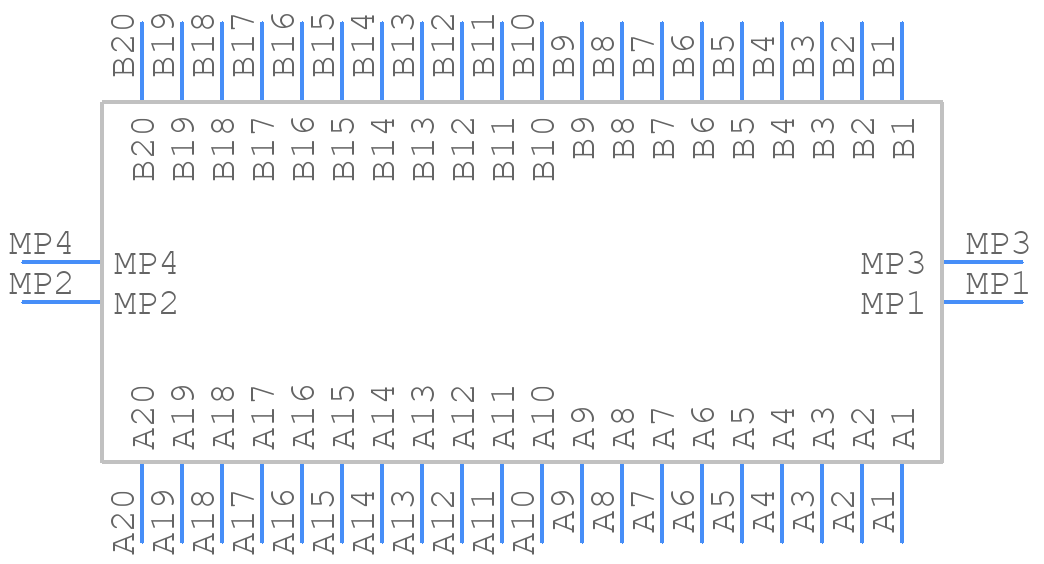

Use the download button to access the 403-52040-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 403-5,
or try a keyword search, such as Headers and Edge Type Connectors
