403-52080-51 - ept

Description: 80 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1, Parallel, Perpendicular, SMT, Cable-to-Board, High Density, Rugged

Download 403-52080-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
403-52080-51 - ept - PCB symbol
click to zoom
PCB Footprints

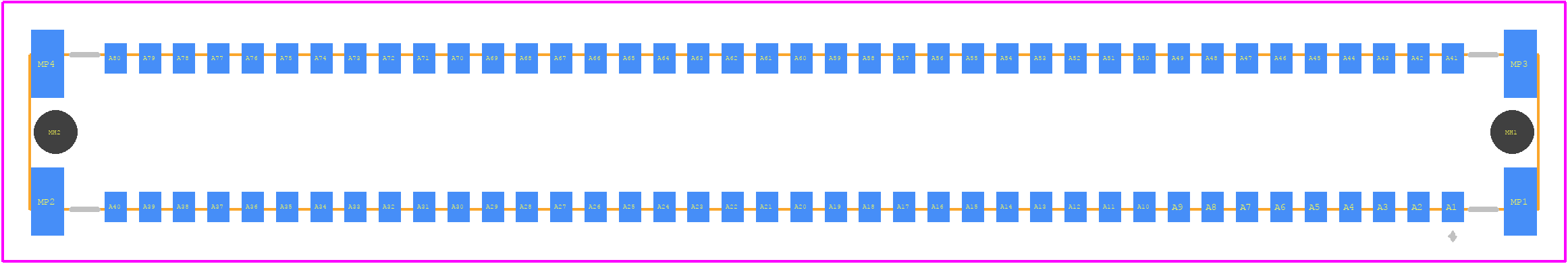

403-52080-51 - ept PCB footprint - Other - Other - 403-52080-51
click to zoom
3D Models
403-52080-51 - ept - 3D model - Other - 403-52080-51
click to zoom

403-52080-51 Details

  • Manufacturer Part Number:

    403-52080-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.75

  • Body Breadth:

    0.224 inch

  • Body Depth:

    0.266 inch

  • Body Length:

    2.2 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

403-52080-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's guidelines or the datasheet for specific torque values.
  • Yes, the 403-52080-51 connector is designed to withstand high-vibration environments. ept Connectors' products are built with ruggedized materials and construction to ensure reliable performance in demanding applications.
  • The 403-52080-51 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental ratings and any necessary derating or precautions.
  • The mating cycle life of the 403-52080-51 connector is typically rated for 500 to 1000 mating cycles, depending on the application and environmental conditions. It's essential to consult the manufacturer's guidelines for specific mating cycle life ratings.
  • Yes, the 403-52080-51 connector is designed to be compatible with automated assembly processes, such as pick-and-place machines and wire termination equipment. ept Connectors' products are built with automation-friendly features to simplify manufacturing and reduce production costs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

403-52080-51 Overview

Use the download button to access the 403-52080-51 schematic symbol, PCB footprint, and 3D model.
