The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's guidelines or application notes for specific torque values.
Yes, the 403-53012-51 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured and mounted to prevent damage or disconnection. Consult the manufacturer's guidelines for specific vibration testing and ratings.
The 403-53012-51 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure that the connector is properly sealed and protected from moisture, dust, and other environmental factors.
While the datasheet recommends AWG 24-18 wire sizes, it's possible to use other wire sizes with the 403-53012-51 connector. However, it's crucial to consult the manufacturer's guidelines and perform necessary testing to ensure compatibility and reliability.
The 403-53012-51 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consult the manufacturer's guidelines for specific temperature ratings and derating factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
403-53012-51 Overview

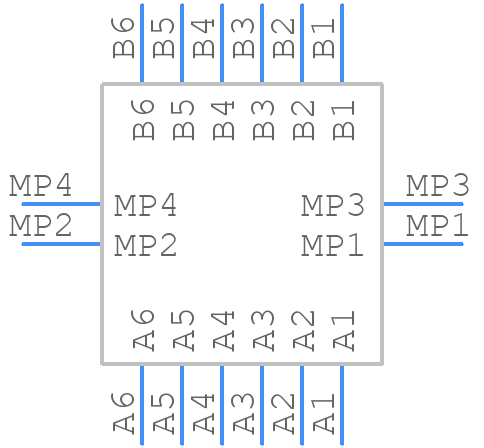

Use the download button to access the 403-53012-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 403-5,
or try a keyword search, such as Headers and Edge Type Connectors
