The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
Yes, the 403-53016-51 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 403-53016-51 connector has an IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure the connector is properly sealed and protected from direct sunlight, moisture, and extreme temperatures.
The 403-53016-51 connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific application and ensure the connector is not exposed to extreme temperatures that may affect its performance or reliability.
While the datasheet specifies AWG 24-18 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's crucial to consult with the manufacturer or a qualified engineer to ensure the connector is used within its specifications and meets the application's requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
403-53016-51 Overview

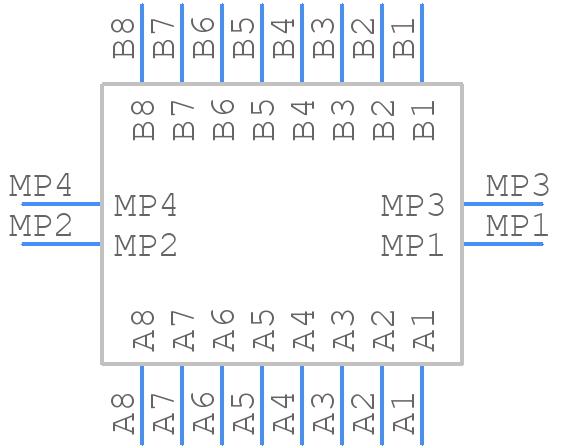

Use the download button to access the 403-53016-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 403-5,
or try a keyword search, such as Headers and Edge Type Connectors
