403-53032-51 - ept

Description: Conn Shrouded Header HDR 32 POS 1.27mm Solder ST Top Entry SMD Reel

Download 403-53032-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

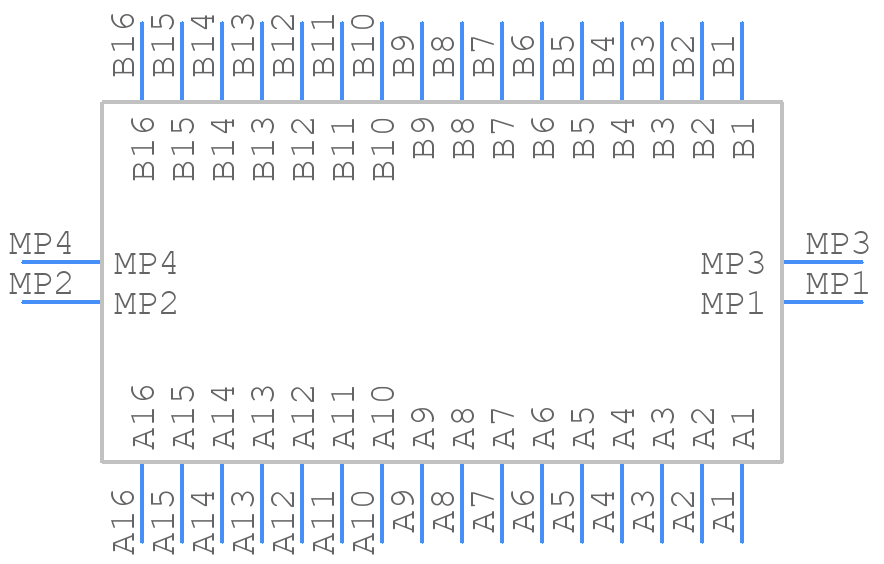

403-53032-51 - ept - PCB symbol
click to zoom
PCB Footprints
403-53032-51 - ept PCB footprint - Other - Other - 403-53032-51-2
click to zoom
3D Models
403-53032-51 - ept - 3D model - Other - 403-53032-51-2
click to zoom

403-53032-51 Details

  • Manufacturer Part Number:

    403-53032-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.75

  • Body Breadth:

    0.224 inch

  • Body Depth:

    0.266 inch

  • Body Length:

    1 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

403-53032-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's application notes or contact their technical support for specific guidance.
  • Yes, the 403-53032-51 connector is designed to withstand vibrations up to 10g according to IEC 61373. However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
  • The 403-53032-51 connector is rated for operating temperatures between -40°C to 125°C and can withstand humidities up to 95% RH. However, it's essential to consult the manufacturer's environmental specifications and ensure the connector is properly sealed and protected from moisture and contaminants.
  • The 403-53032-51 connector is designed to accommodate wire sizes between AWG 24 and AWG 16. Using larger wire sizes may compromise the connector's performance and reliability.
  • The 403-53032-51 connector is designed for signal transmission up to 1 Gbps. For higher-speed applications, it's recommended to consult the manufacturer's high-speed connector offerings or consider alternative solutions.
