403-53080-51 - ept

Description: Conn Shrouded Header HDR 80 POS 1.27mm Solder ST Top Entry SMD Reel

Download 403-53080-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
403-53080-51 - ept - PCB symbol
click to zoom

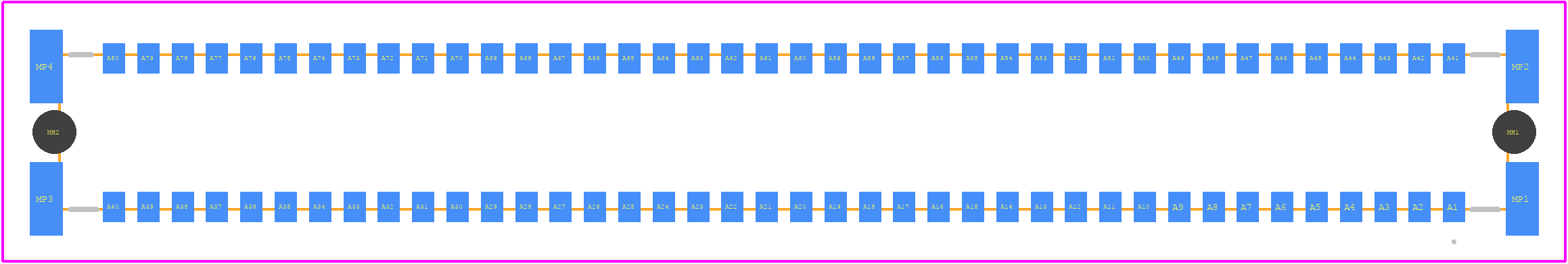

PCB Footprints
403-53080-51 - ept PCB footprint - Other - Other - 403-53080-51
click to zoom
3D Models
403-53080-51 - ept - 3D model - Other - 403-53080-51
click to zoom

403-53080-51 Details

  • Manufacturer Part Number:

    403-53080-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.75

  • Body Breadth:

    0.224 inch

  • Body Depth:

    0.266 inch

  • Body Length:

    2.2 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

403-53080-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's guidelines or the datasheet for specific torque values.
  • Yes, the 403-53080-51 connector is designed to withstand high-vibration environments. ept Connectors' products are built with ruggedized designs and materials to ensure reliable performance in demanding applications.
  • The 403-53080-51 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental ratings and any necessary precautions.
  • The 403-53080-51 connector is designed to accommodate wire sizes ranging from 24 AWG to 16 AWG. It's essential to consult the datasheet or manufacturer's guidelines for specific wire size recommendations.
  • Yes, the 403-53080-51 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability and safety.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

403-53080-51 Overview

Use the download button to access the 403-53080-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 403-5, or try a keyword search, such as Headers and Edge Type Connectors
