The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's guidelines or the datasheet for specific torque values to ensure reliable connections.
Yes, the 404-51026-51 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured and mounted to prevent damage or disconnection. Consult the manufacturer's guidelines for specific vibration testing and ratings.
The 404-51026-51 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure that the connector is properly sealed and protected from moisture, dust, and other environmental factors to maintain its performance and reliability.
While the datasheet recommends using AWG 24-20 wire sizes, it's possible to use other wire sizes with the 404-51026-51 connector. However, it's crucial to consult the manufacturer's guidelines and perform necessary testing to ensure reliable connections and prevent damage to the connector or wire.
The 404-51026-51 connector has a maximum operating temperature of 125°C (257°F). Exceeding this temperature may affect the connector's performance, reliability, and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
404-51026-51 Overview

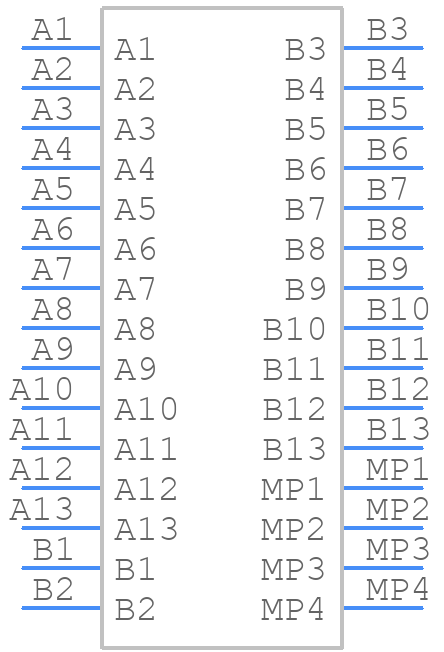

Use the download button to access the 404-51026-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 404-5,
or try a keyword search, such as Headers and Edge Type Connectors
